Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Defogger Wiring Schematics >> Defogger

April 5, 2026: LEMON Manuals is launched! Read the announcement.

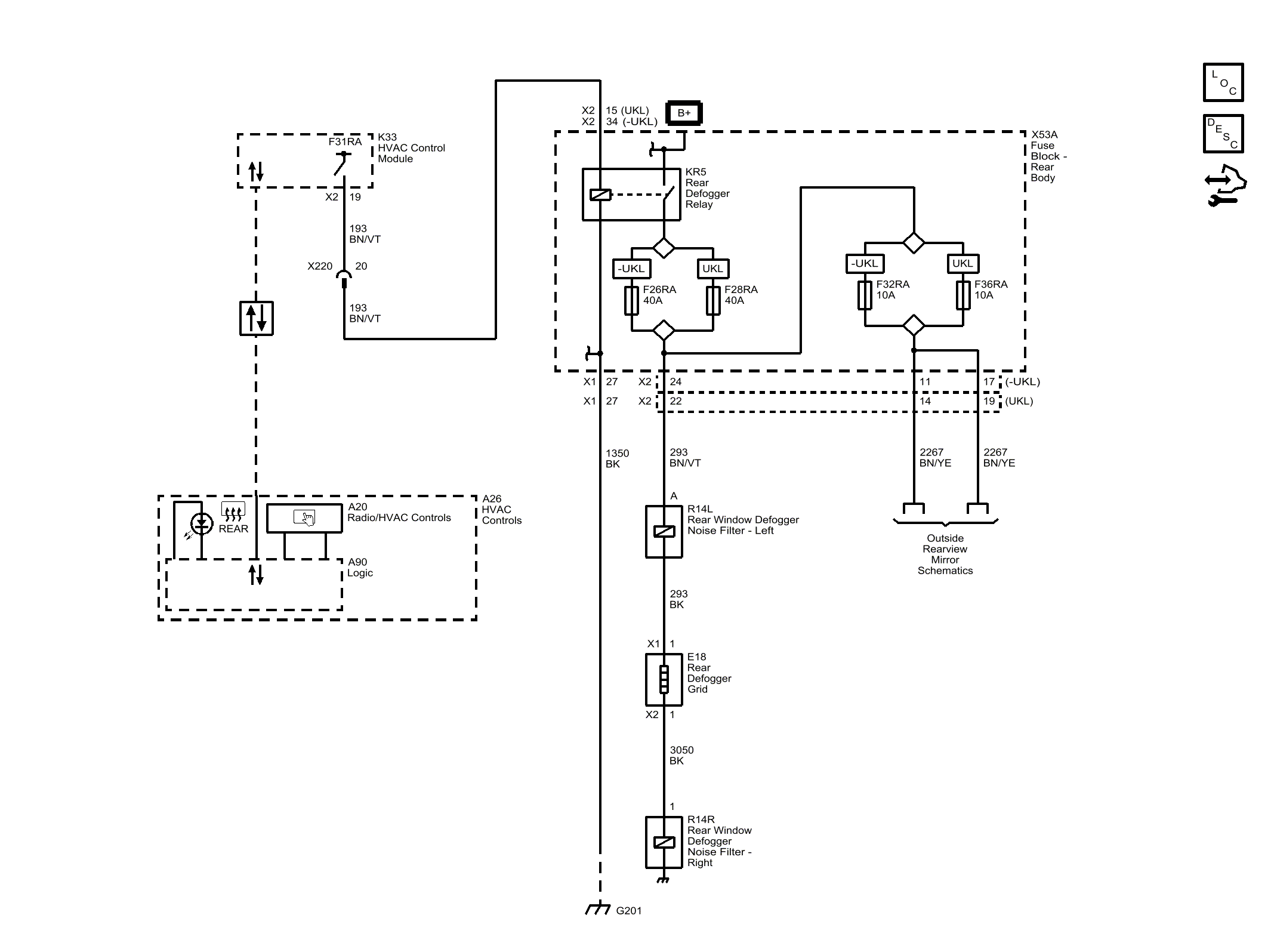

Defogger Wiring Schematics: Defogger

GM4597931
