Home >> Cadillac >> 2018 >> CT6 Plug-In >> Repair and Diagnosis >> Body & Frame >> Windows >> Fixed And MOVEABLE Window System >> Schematic Wiring Diagrams >> Moveable Window Wiring Schematics >> Passenger

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

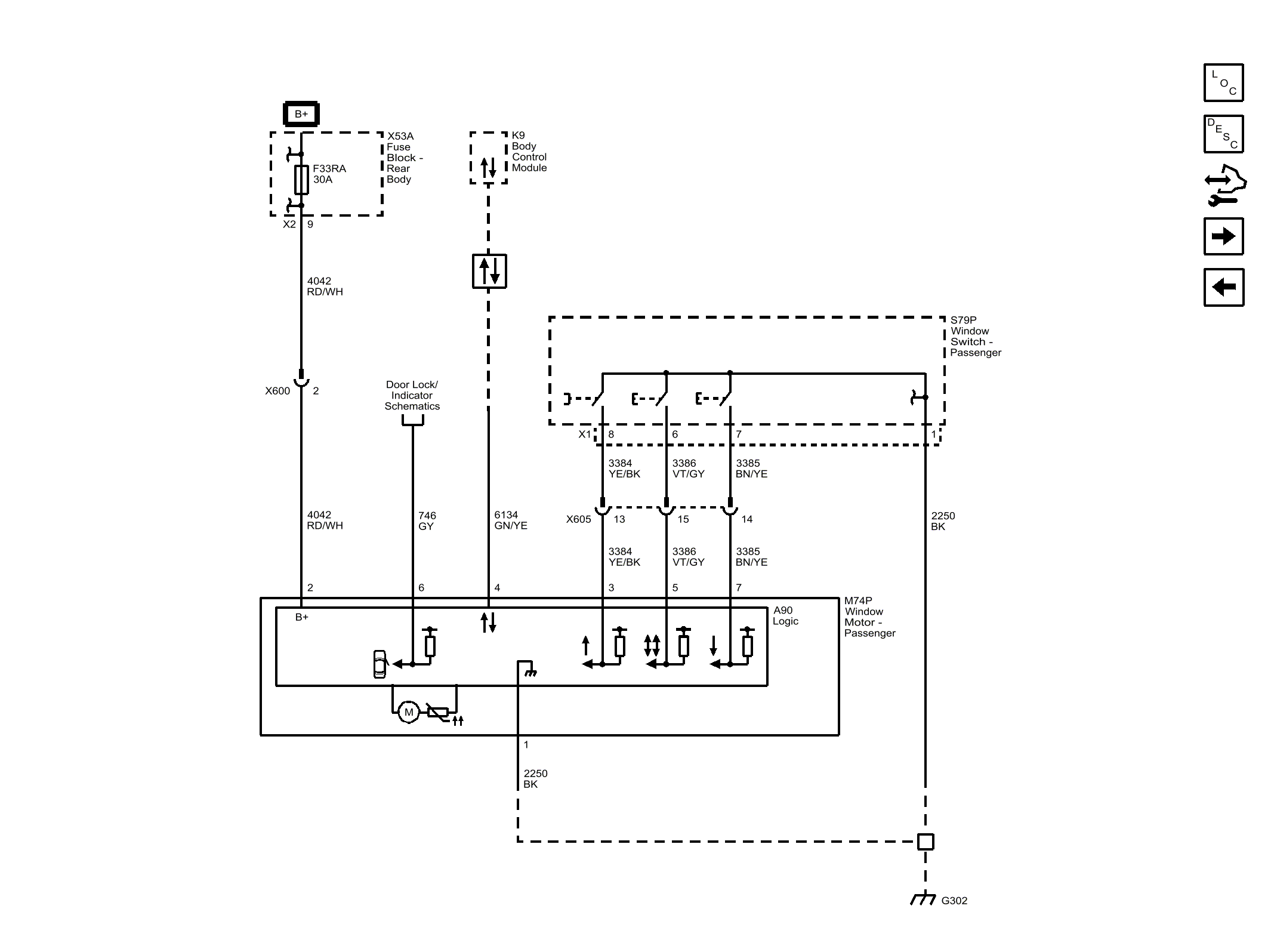

Moveable Window Wiring Schematics: Passenger

GM4597305
