Installation Procedure

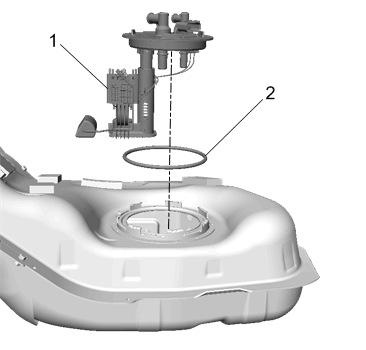

  1. GM4481253Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Sender (1) - Install

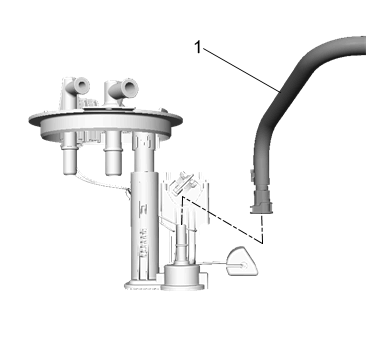

  3. GM4481257Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

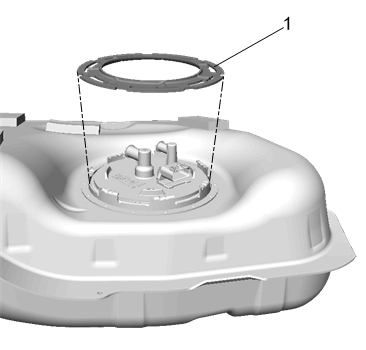

  4. GM4481230Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Install - CH 45722  wrench

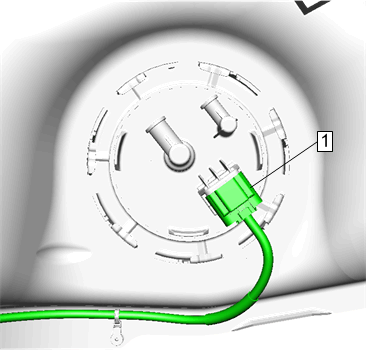

  5. GM4481229Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Connect

  6. Fuel Tank - Install - Fuel Tank Replacement (HP9)
