Installation Procedure

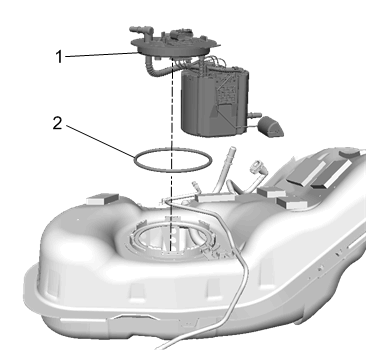

  1. GM4481424Courtesy of GENERAL MOTORS COMPANY

    O-Ring (2) - Install NEW

  2. Fuel Tank Fuel Pump Module (1) - Install
  3. GM4247597Courtesy of GENERAL MOTORS COMPANY

    Transfer Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

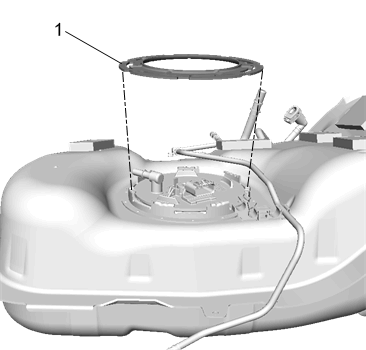

  4. GM4481419Courtesy of GENERAL MOTORS COMPANY

    Fuel Sender Ring (1) - Install - CH 45722  wrench

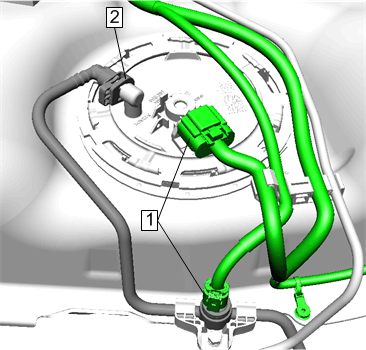

  5. GM4481392Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service

  6. Electrical Connector (1) - Connect [2x]
  7. Fuel Tank - Install - Fuel Tank Replacement (HP9)
