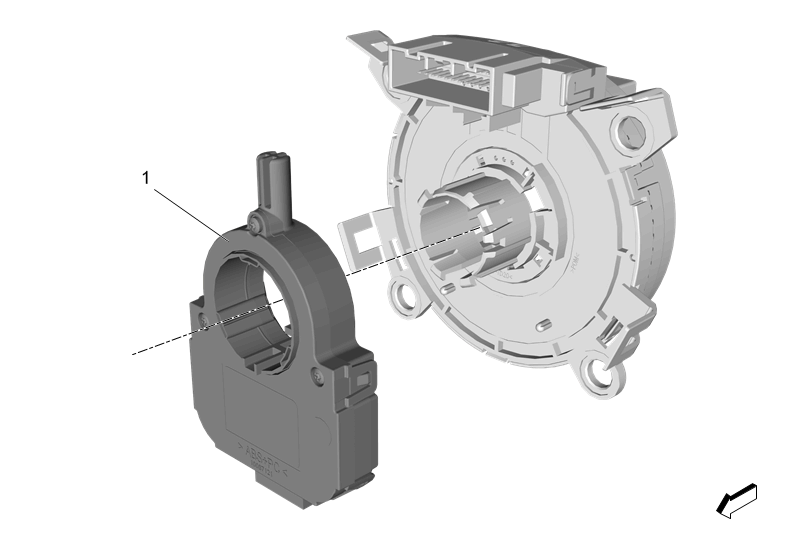

Steering Angle Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Coil Replacement
1	Steering Angle Sensor Procedure Press in the retaining tabs on the steering wheel airbag coil and remove the steering angle sensor. Center the steering angle sensor. Steering Wheel Angle Sensor Centering (without UKL)Steering Wheel Angle Sensor Centering (with UKL)

Callout

Component Name

Preliminary Procedure
Steering Wheel Airbag Coil Replacement

Steering Angle Sensor

Procedure

Press in the retaining tabs on the steering wheel airbag coil and remove the steering angle sensor.
Center the steering angle sensor. Steering Wheel Angle Sensor Centering (without UKL)Steering Wheel Angle Sensor Centering (with UKL)
