Cellular System, Entertainment System, And Navigation System - Schematic Wiring Diagrams
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO6)
>>
Human Machine Interface and Display, Power, Ground, Serial Data and Microphone
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

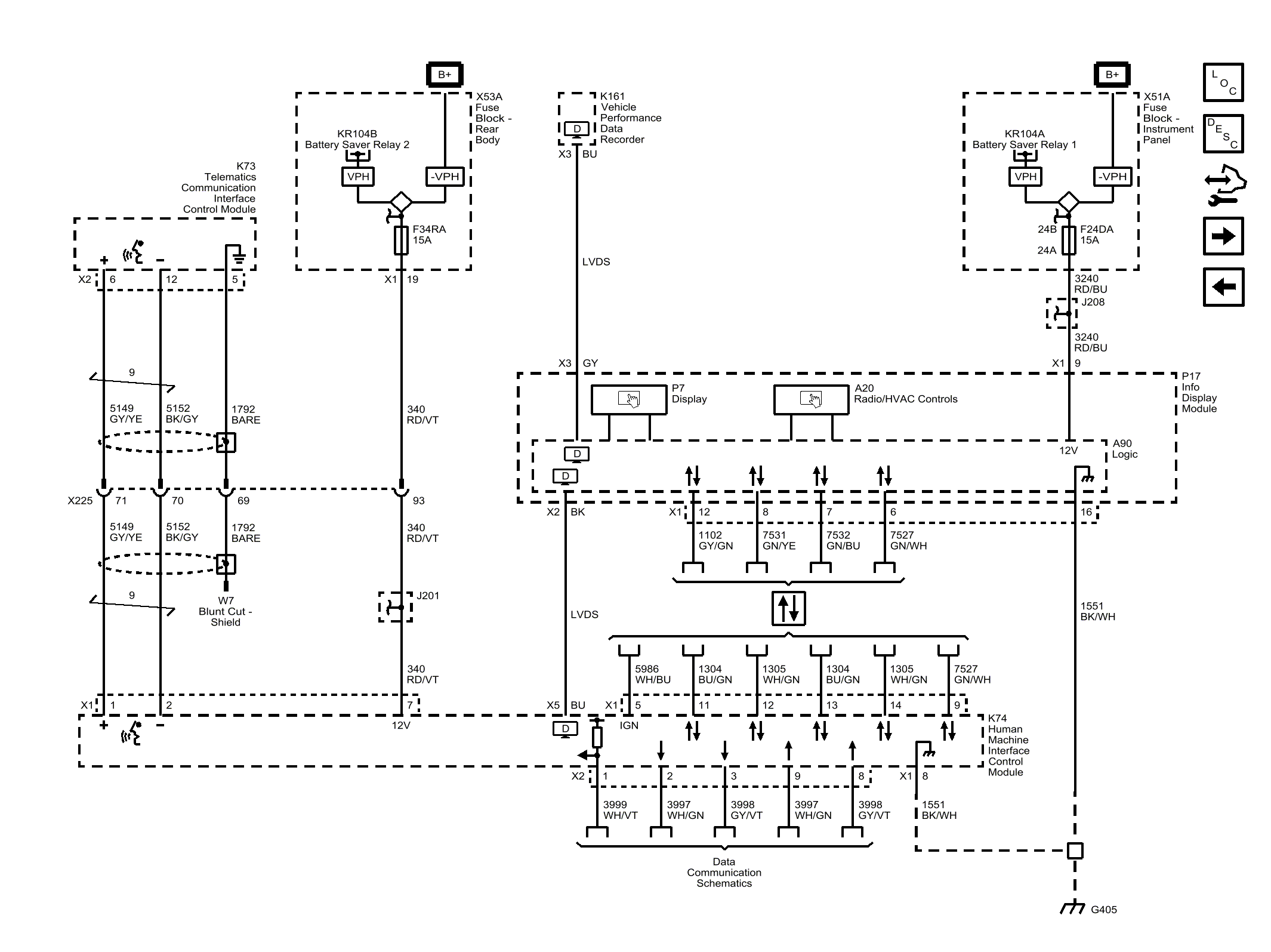

Human Machine Interface and Display, Power, Ground, Serial Data and Microphone
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
