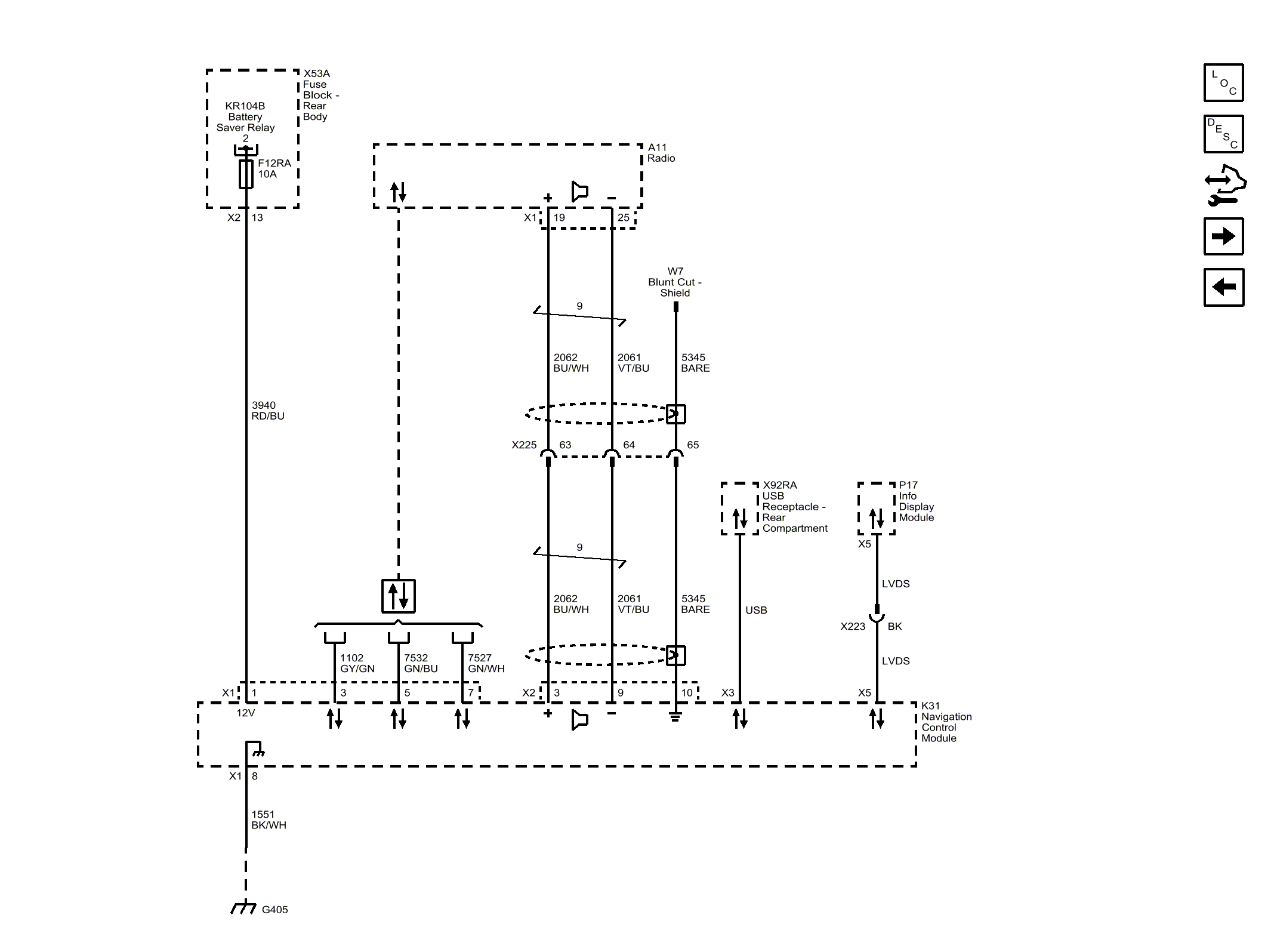

Navigation Power, Ground, Serial Data and Signals (IOT+MAW)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
