Installation Procedure

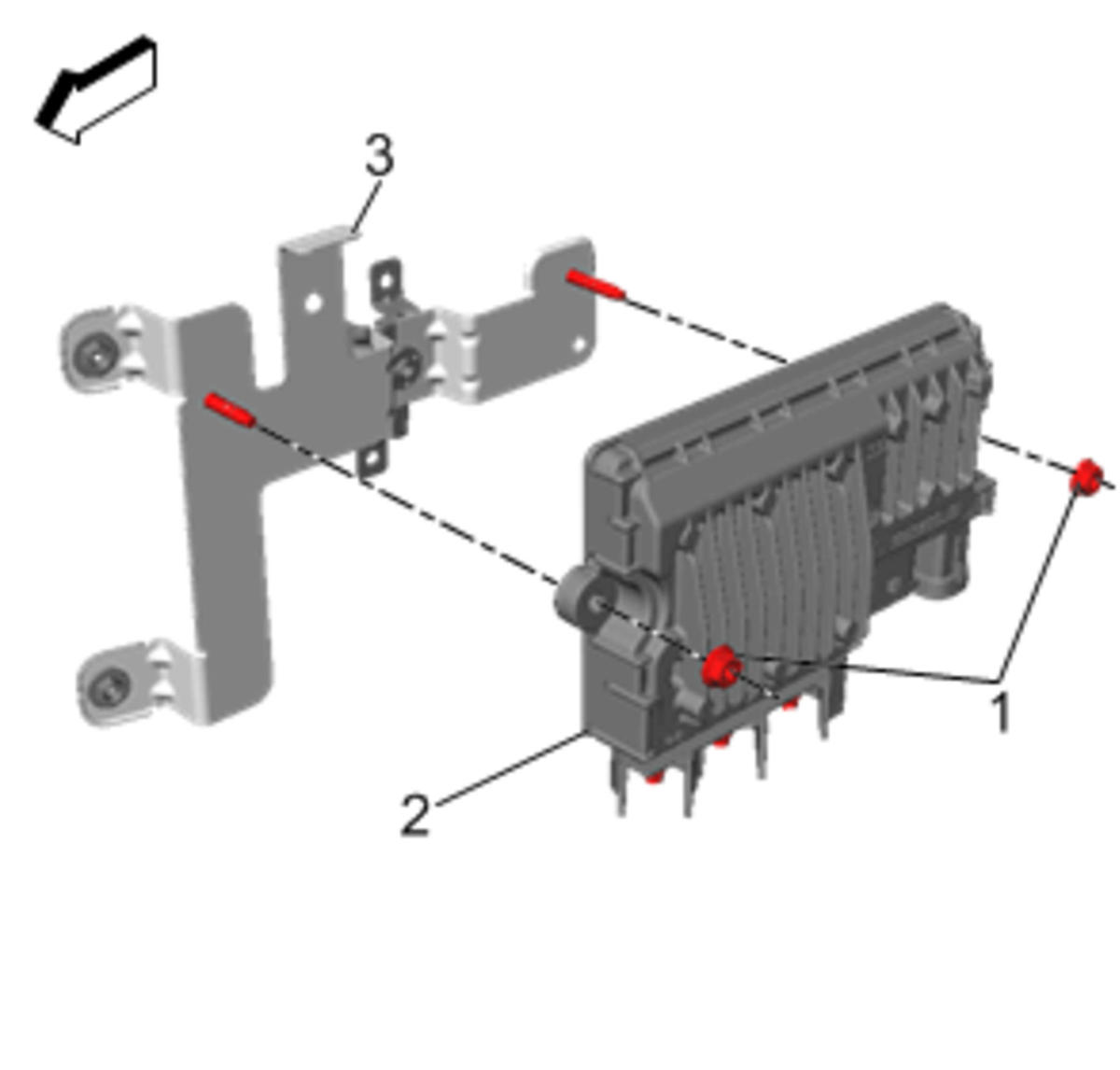

Multifunction Energy Storage Capacitor Control Module (2) - Install
- Multifunction Energy Storage Capacitor Control Module Nut (1) - Install and tighten to 9 N.m (80 lb in) [2x]

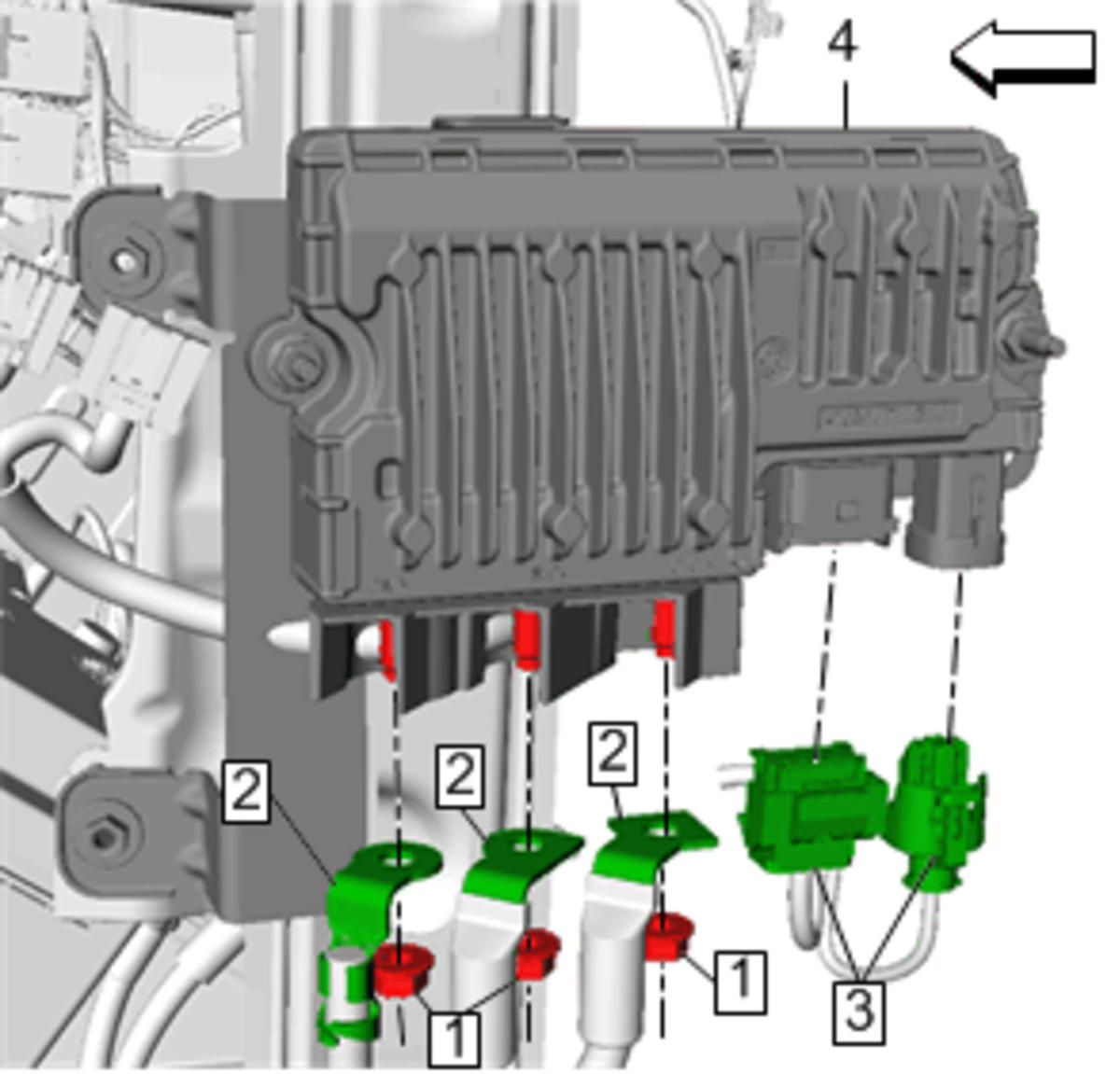

Auxiliary Generator Battery Jumper Cable (2) - Install [3x]
- Auxiliary Generator Battery Jumper Cable Nut (1) - Install and tighten to 12 N.m (106 lb in) [3x]
- Connect the electrical connectors. (3)

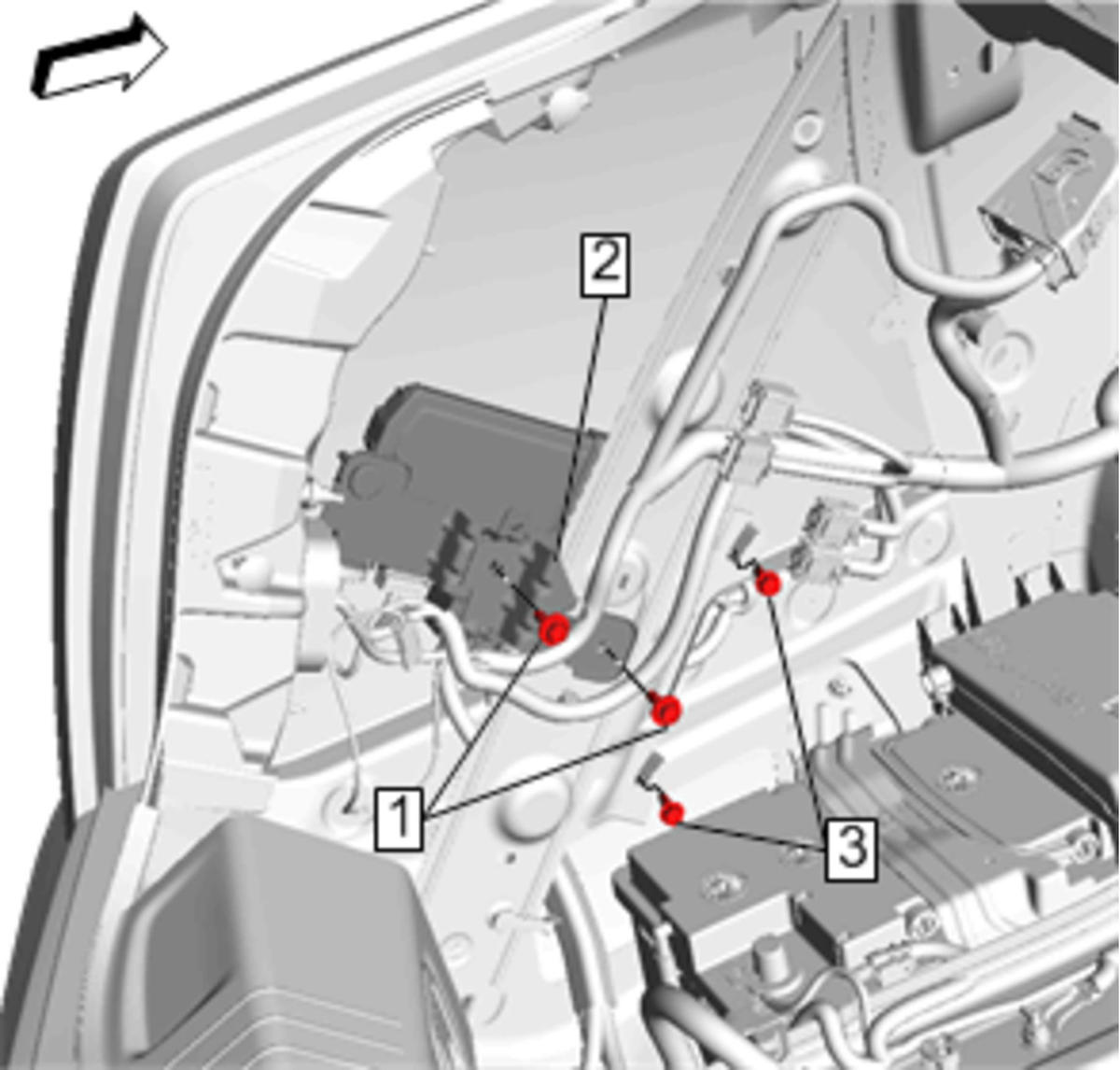

Multifunction Energy Storage Capacitor Control Module Bracket (2) - Install
- Multifunction Energy Storage Capacitor Control Module Bracket Bolt (1) - Install and tighten to 9 N.m (80 lb in) [2x]
- Multifunction Energy Storage Capacitor Control Module Bracket Bolt (3) - Install and tighten [2x] to 9 N.m (80 lb in)
{If equipped} Active Safety Control Module Bracket (2) - Install
- {If equipped} Active Safety Control Module Bracket Bolt (1) - Install and tighten to 2.5 N.m (22 lb in)
- Rear Compartment Side Trim Replacement - Left Side - Install
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (with KL9) .
- Perform Stop/Start Capacitor Control State Health Reset. Stop/Start Capacitor Control State of Health Reset
CAUTION:
Refer to Fastener Caution .
