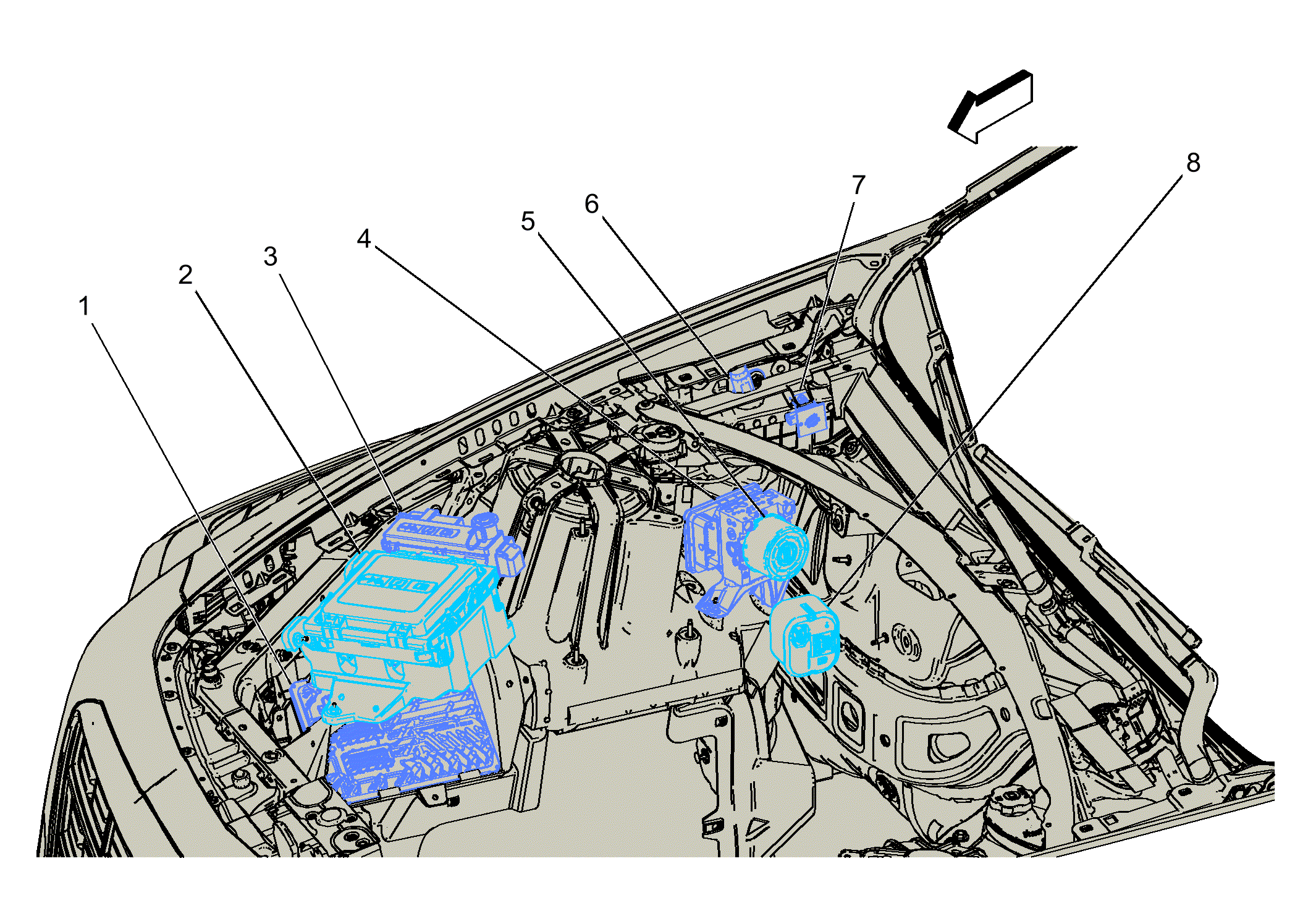

Right Side of Engine Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Items
1. K20 Engine Control Module K20 Engine Control Module X1 (LF3)K20 Engine Control Module X1 (LGX)K20 Engine Control Module X1 (LT4)K20 Engine Control Module X1 (LTG)K20 Engine Control Module X2 (LF3)K20 Engine Control Module X2 (LGX)K20 Engine Control Module X2 (LT4)K20 Engine Control Module X2 (LTG)K20 Engine Control Module X3 (LF3)K20 Engine Control Module X3 (LGX)K20 Engine Control Module X3 (LT4)K20 Engine Control Module X3 (LTG)
2. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1 X50A Fuse Block - Underhood X2 X50A Fuse Block - Underhood X3 X50A Fuse Block - Underhood X4 X50A Fuse Block - Underhood X5
3. X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1 (-KL9)X50B Fuse Block - Underhood Auxiliary X1 (KL9)X50B Fuse Block - Underhood Auxiliary X2 (KL9)X50B Fuse Block - Underhood Auxiliary X4 (-KL9)X50B Fuse Block - Underhood Auxiliary X4 (KL9)X50B Fuse Block - Underhood Auxiliary X5 (LF3/LGX/LTG)X50D Fuse Block - Battery X5 X50B Fuse Block - Underhood Auxiliary X5 (LT4)X50B Fuse Block - Underhood Auxiliary X6 (Battery Positive Body)X50B Fuse Block - Underhood Auxiliary X6 (Starter Cable)
4. K17 Electronic Brake Control Module K17 Electronic Brake Control Module (-LT4)
5. Q5 Brake Pressure Modulator
6. F100R Hood Hinge Actuator - Right (B3T) F100R Hood Hinge Actuator - Right
7. B108 Air Quality Sensor B108 Air Quality Sensor
8. P25 Power Sounder Content Theft Deterrent Alarm Module (UTR) P25 Power Sounder Content Theft Deterrent Alarm Module
