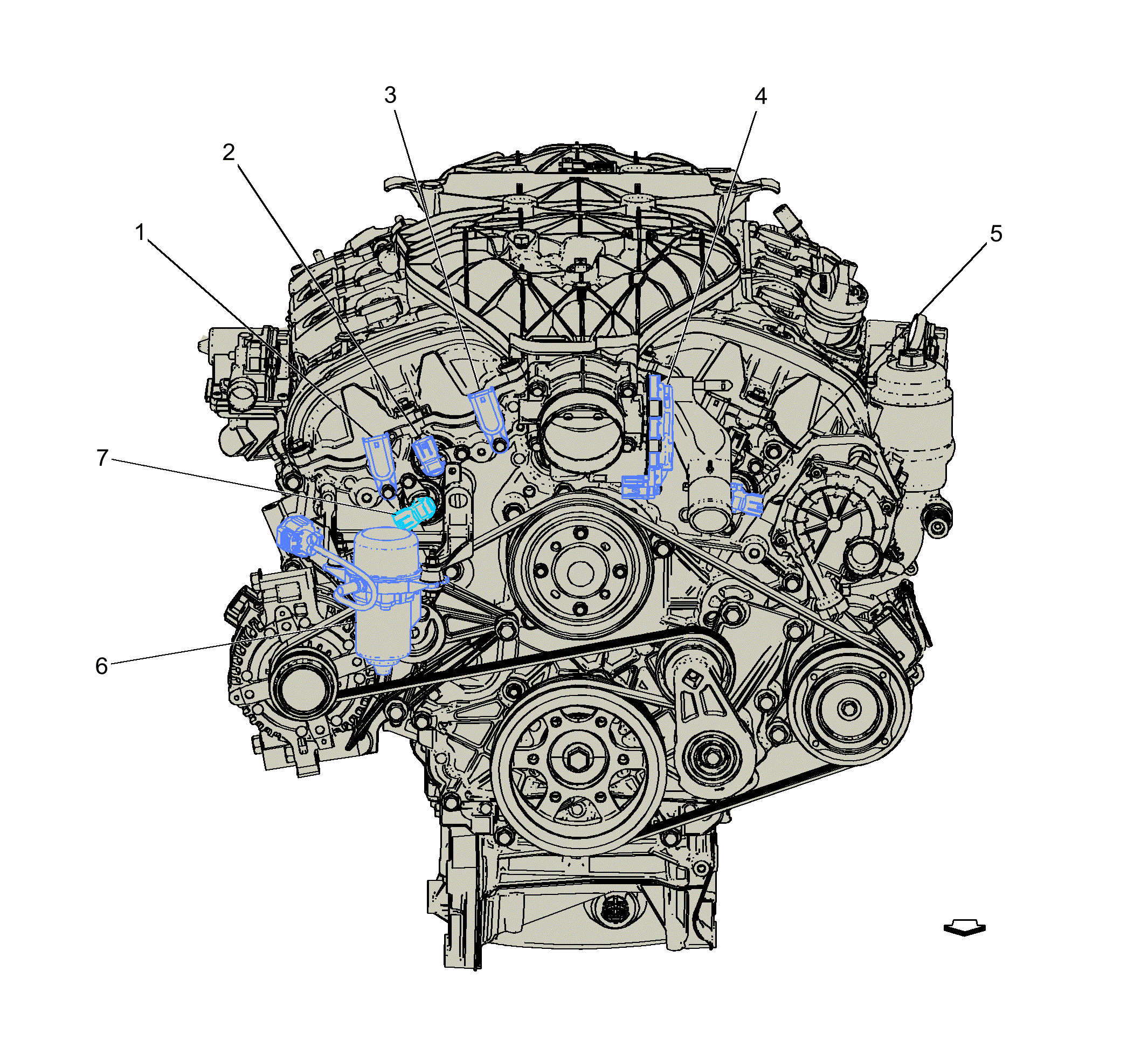

Engine Components - Front (LGX)

GM3454985Courtesy of GENERAL MOTORS COMPANY
Engine Components - Front (LGX)

Items
1. B23A Camshaft Position Sensor - Bank 1 Exhaust (LF3/LGX) B23A Camshaft Position Sensor - Bank 1 Exhaust (LF3)B23A Camshaft Position Sensor - Bank 1 Exhaust (LGX)
2. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF3/LGX) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LF3)Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGX)
3. B23B Camshaft Position Sensor - Bank 1 Intake (LF3/LGX) B23B Camshaft Position Sensor - Bank 1 Intake (LF3)B23B Camshaft Position Sensor - Bank 1 Intake (LGX)
4. Q38 Throttle Body Q38 Throttle Body (LF3)Q38 Throttle Body (LGX/LTG)Q38 Throttle Body (LT4)
5. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF3/LGX) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LF3)Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGX)
6. M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor (LF3)M9 Brake Booster Pump Motor (LT4)
7. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF3/LGX) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LF3)Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGX)
