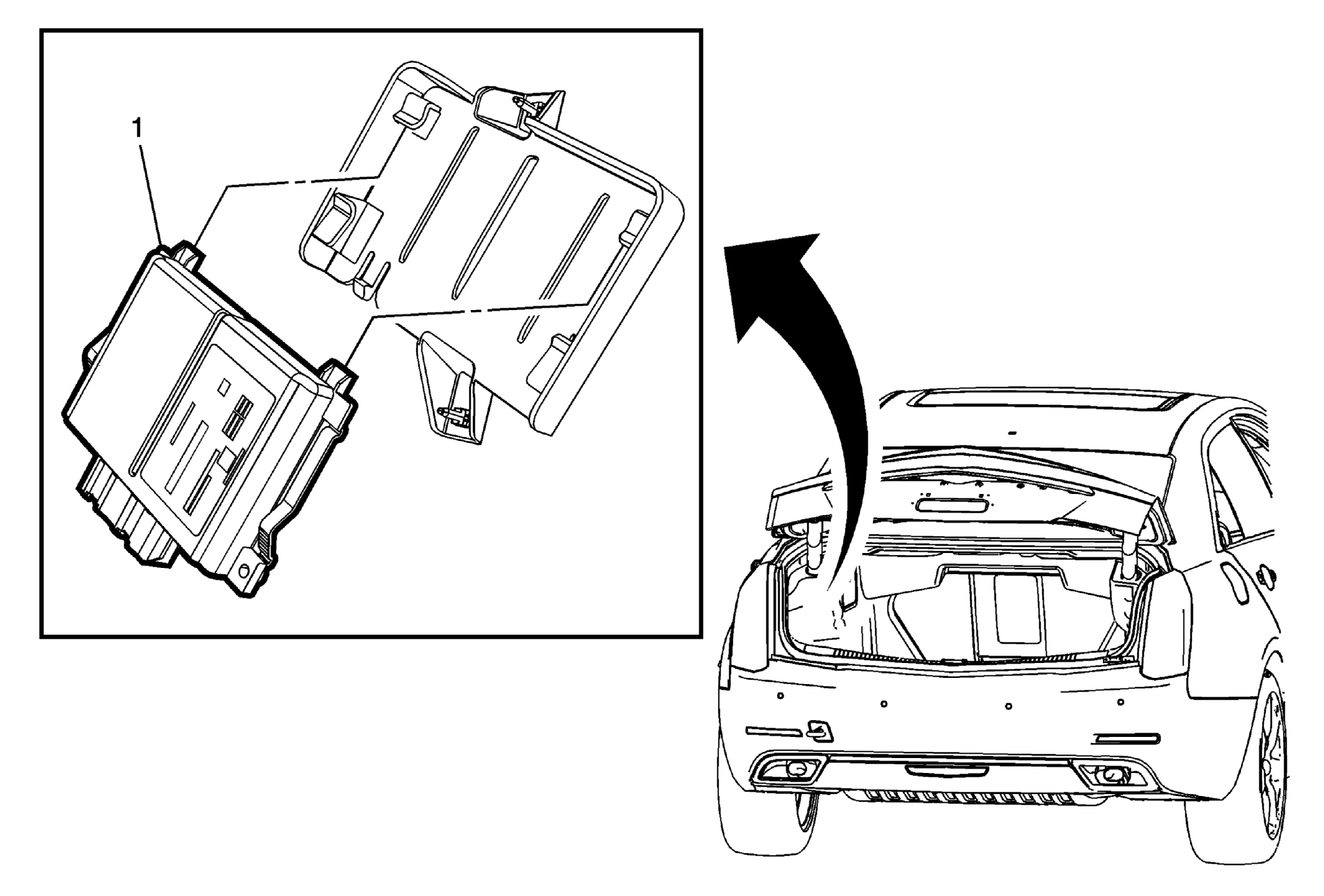

Active Safety Control Module Replacement
| Callout |
Component Name |
Preliminary Procedure
Remove the rear compartment side trim panel - left side. Refer to Rear Compartment Side Trim Replacement - Left Side
. |
| 1 |
Active Safety Control Module Procedure
- Release the locking retainer from the active safety control module bracket.
- Disconnect the electrical connectors.
- For programming and set up, refer to Control Module References
.
|
