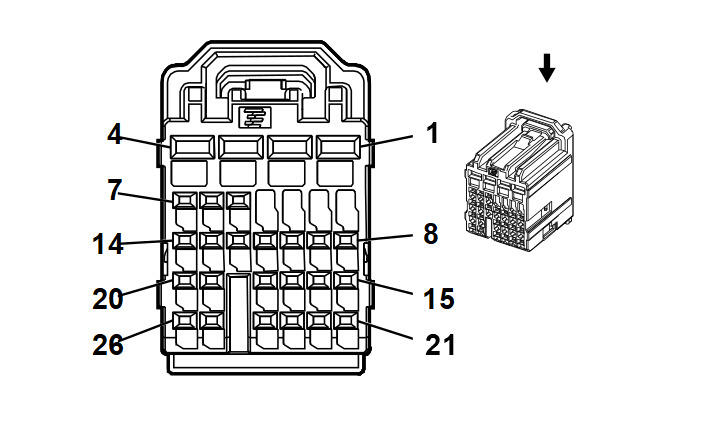

K9 Body Control Module X1

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575578	J-35616-35 (VT)	J-38125-553	Not Available	Not Available	Not Available	Not Available
II	13582297	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available
III	13582326	J-35616-35 (VT)	J-38125-553	8100-4444	Sumitomo 22	2	A

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.75	BK	1350	Ground	III	-
2	1.5	RD/BU	2540	Battery Positive Voltage	I	-
3	1.5	RD/GY	2140	Battery Positive Voltage	I	-
4	0.75	RD/BN	2240	Battery Positive Voltage	III	-
5	0.5	WH	6816	Indicator Dimming Control	II	-
6	0.35	BN/WH	4046	Glove Box Door Release Relay Control	II	-
7	0.35	BK/YE	5005	Instrument Panel Lamp Dimmer Switch Low Reference	II	-
8	0.35	BN/BK	5720	Ignition Mode Switch Accessory LED Signal	II	-
9 - 10	-	-	-	Not Occupied	-	-
11	0.35	GN/BN	306	Headlamp Switch Headlamps Off Signal Control	II	-
12	0.35	BU/GY	187	Rear Fog Lamp Switch Signal	II	T79
13	0.35	BU/RD	1688	5V Reference	II	-
14	0.35	GY/GN	328	Interior Lamp Defeat Switch Signal	II	-
15	0.35	BN/BU	775	Camera Wash Signal	II	DRZ
16	0.35	WH/VT	103	Headlamp Switch On Signal	II	-
17	-	-	-	Not Occupied	-	-
18	0.35	BU/VT	5904	Steering Column Lock Status Signal	II	ULS
19	0.35	BK/BN	5360	Brake Apply Sensor Low Reference	II	-
20	0.35	BU/BK	5719	Ignition Mode Switch Start LED Signal	II	-
21	0.35	GY	728	Security Indicator Control	II	-
22	0.35	GN/GY	13	Headlamp Switch Park Lamp Signal	II	-
23	0.5	VT/GN	7558	LED Ambient Lighting Control 2	II	-
24	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	II	-
25	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	II	-
26	0.35	BU	3275	Remote Function Actuator Receive Signal	II	-
