Fuel Pump Power Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

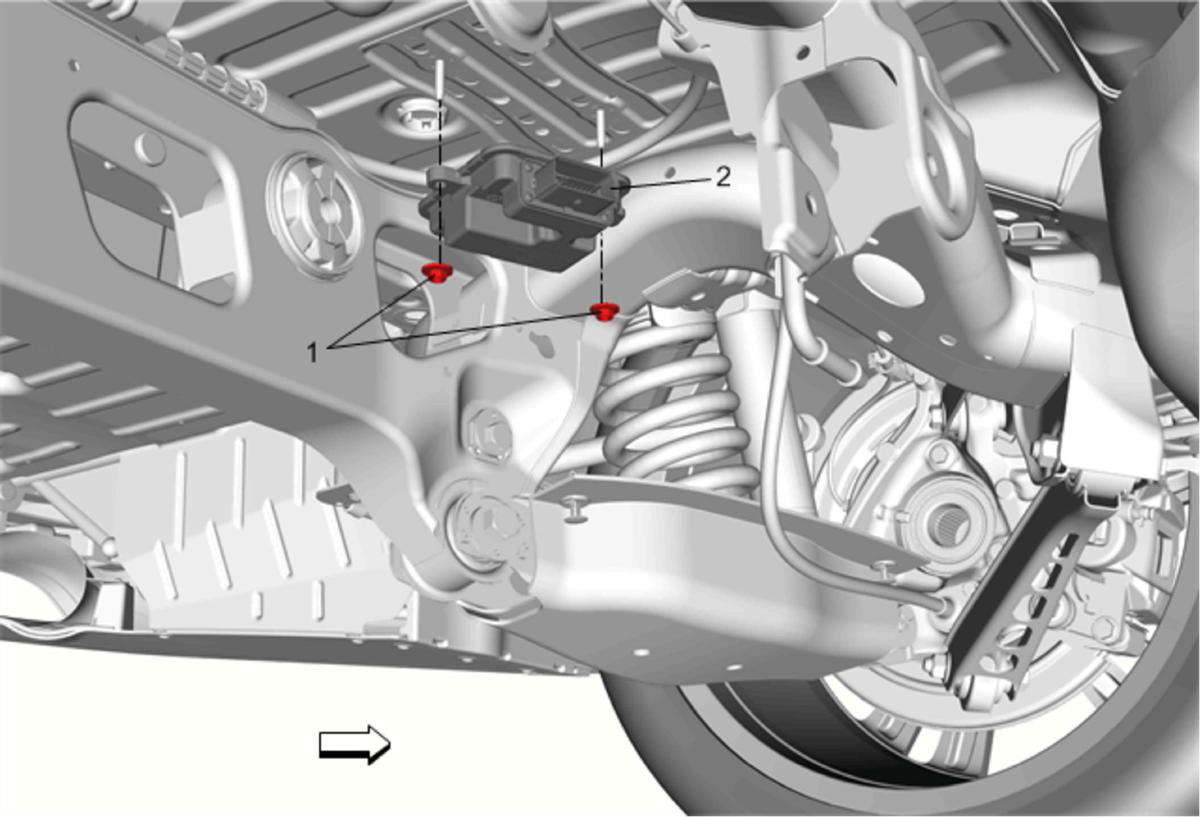

Callout	Component Name
Preliminary Procedure Raise and support vehicle. Refer to Lifting and Jacking the Vehicle (CTS) .
1	Fuel Pump Power Control Module Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Unclip the electrical harness from the fuel pump control module mounting stud. Tighten 9 N.m (80 lb in)
2	Fuel Pump Power Control Module Procedure Disconnect the electrical connector. If replacing, reprogram the control module. Refer to Service Programming System (SPS) .

Callout

Component Name

Preliminary Procedure
Raise and support vehicle. Refer to Lifting and Jacking the Vehicle (CTS) .

Fuel Pump Power Control Module Fastener (Qty: 2)

CAUTION:

Procedure

Tighten
9 N.m (80 lb in)

Fuel Pump Power Control Module

Procedure

Disconnect the electrical connector.
If replacing, reprogram the control module. Refer to Service Programming System (SPS) .
