Installation Procedure

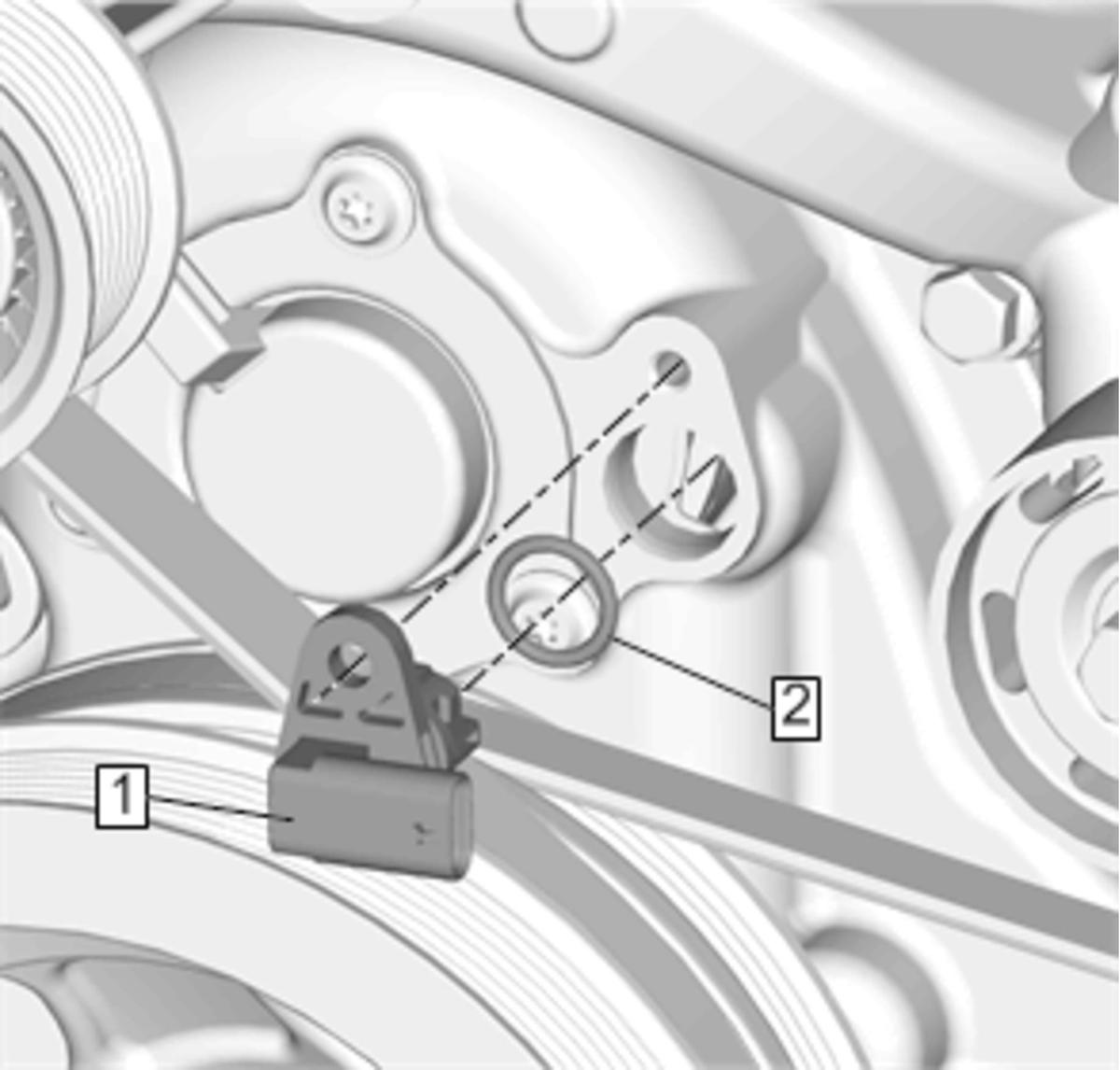

Install the NEW O-ring seal (2)
- Install the camshaft position sensor (1) into the engine front cover.

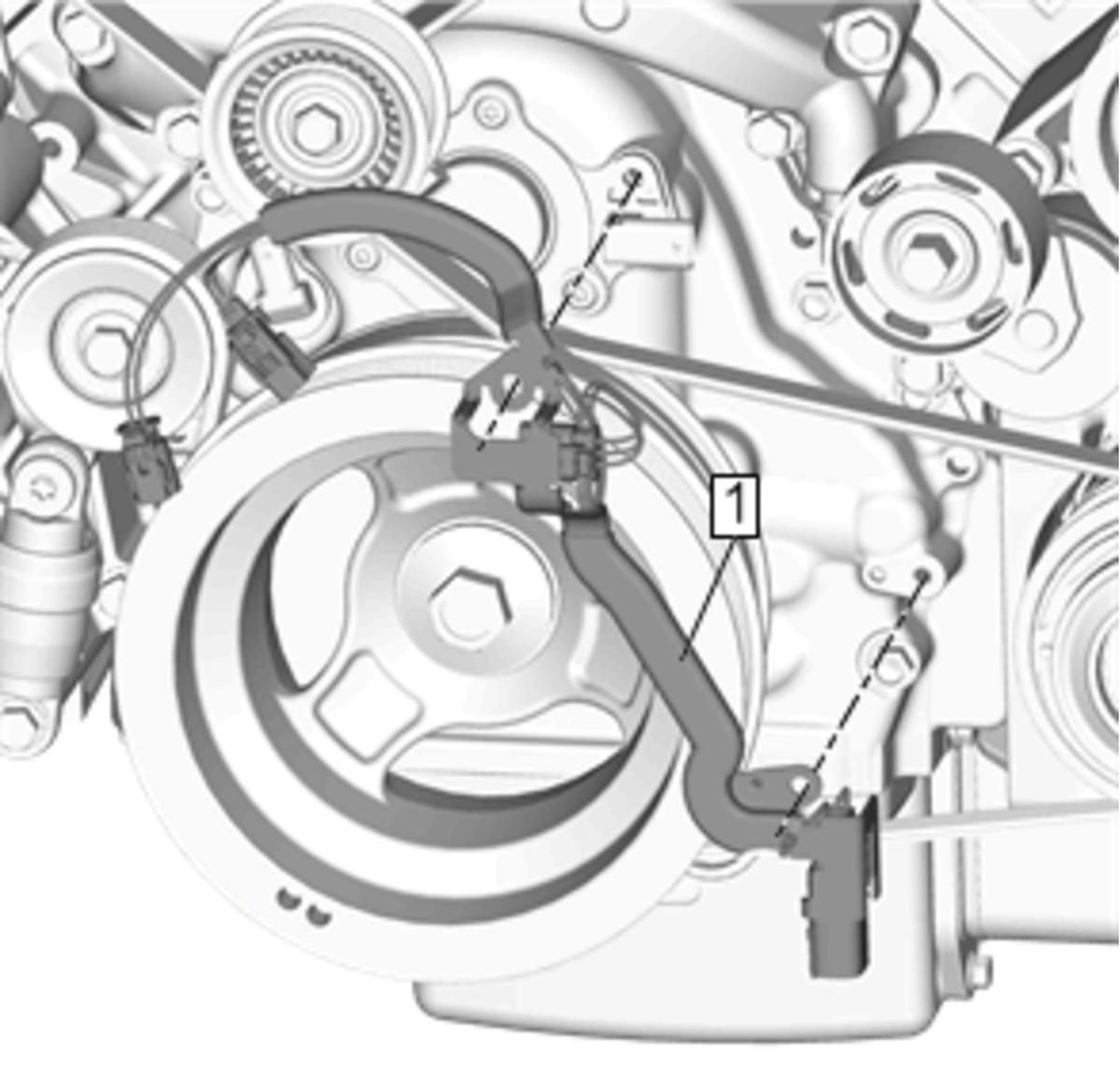

Position the camshaft position sensor bracket and sensor wiring harness (1) in place.

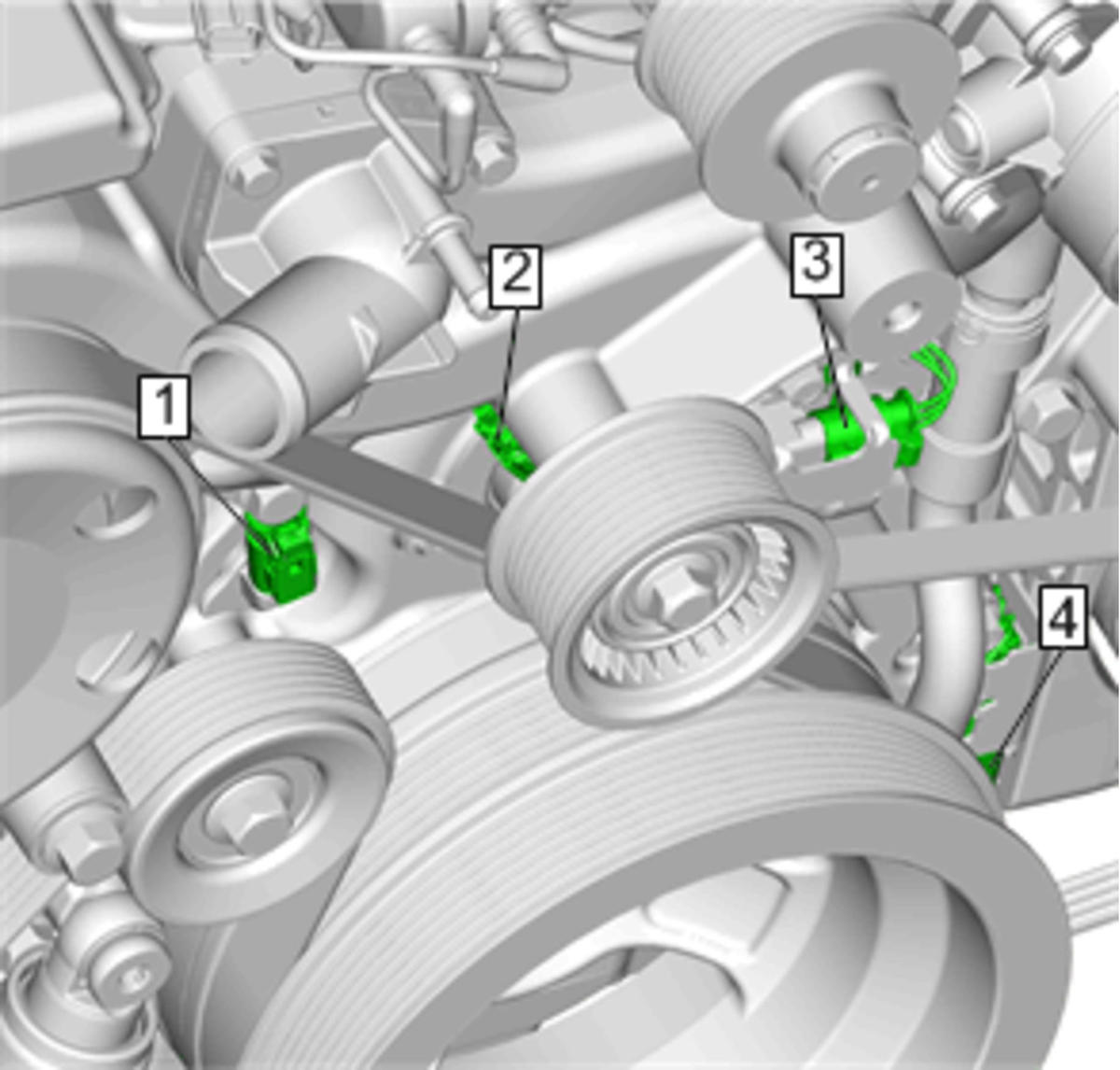

Connect the oil pump flow control valve connector (1), camshaft position actuator solenoid connector (2), camshaft position sensor connector (3), and the engine wiring harness connector (4).
- CAUTION:
Refer to Fastener Caution .

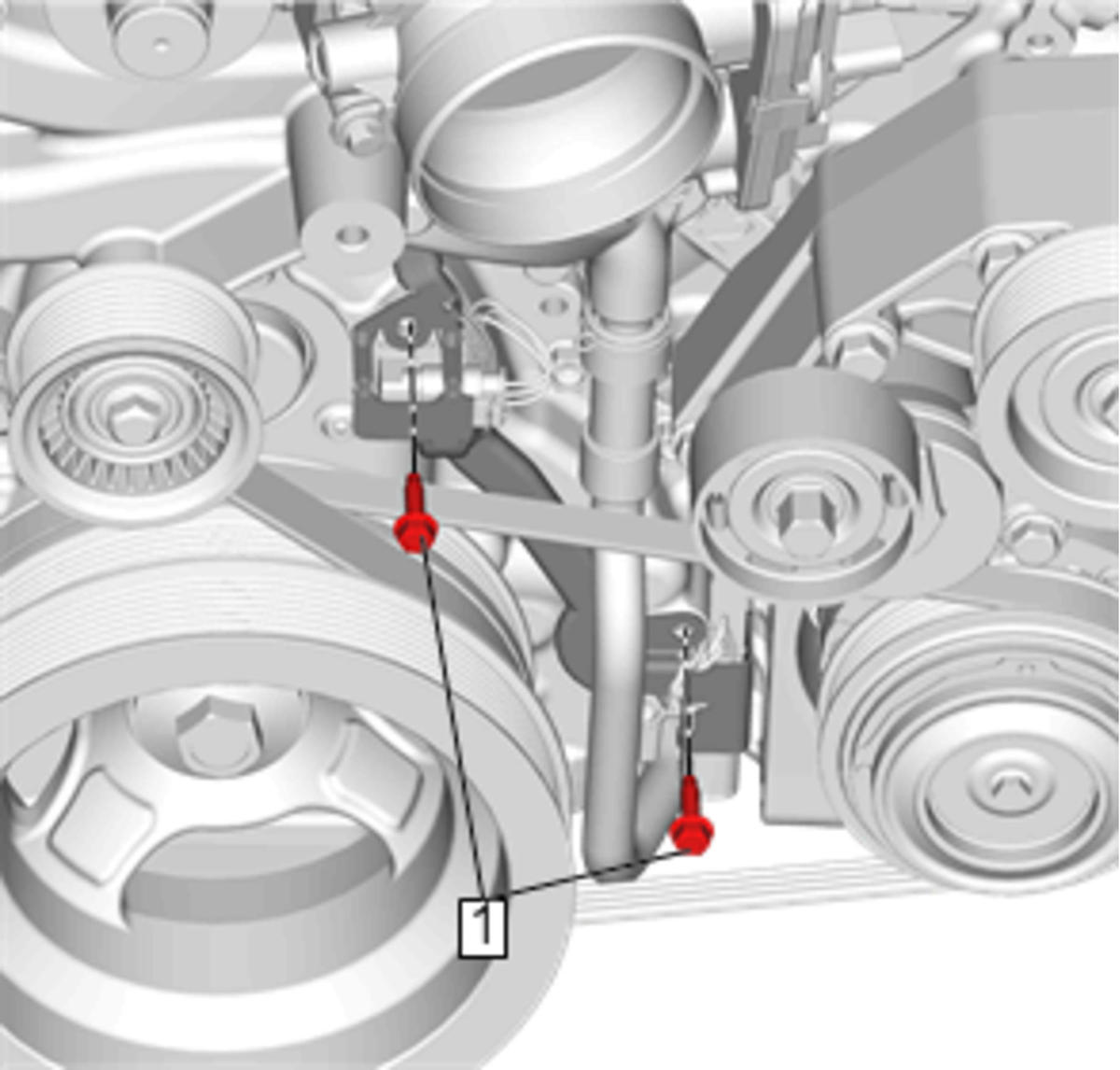

Install the camshaft position sensor bracket fasteners (1) and tighten to 25 N.m (18 lb ft).
- Engine Oil Cooler Hose/Pipe Replacement (LT4) - Install
- Supercharger Belt Idler Pulley Replacement (Supercharger Belt Tensioner Bracket)Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Upper)Supercharger Belt Idler Pulley Replacement (Engine Coolant Manifold - Lower) - Install
- Air Cleaner Outlet Duct Replacement - Install
- Intake Manifold Cover Replacement - Front - Install
