Power Transfer Unit Intermediate Drive Shaft Components Removal
Power Transfer Unit Intermediate Drive Shaft Components Removal

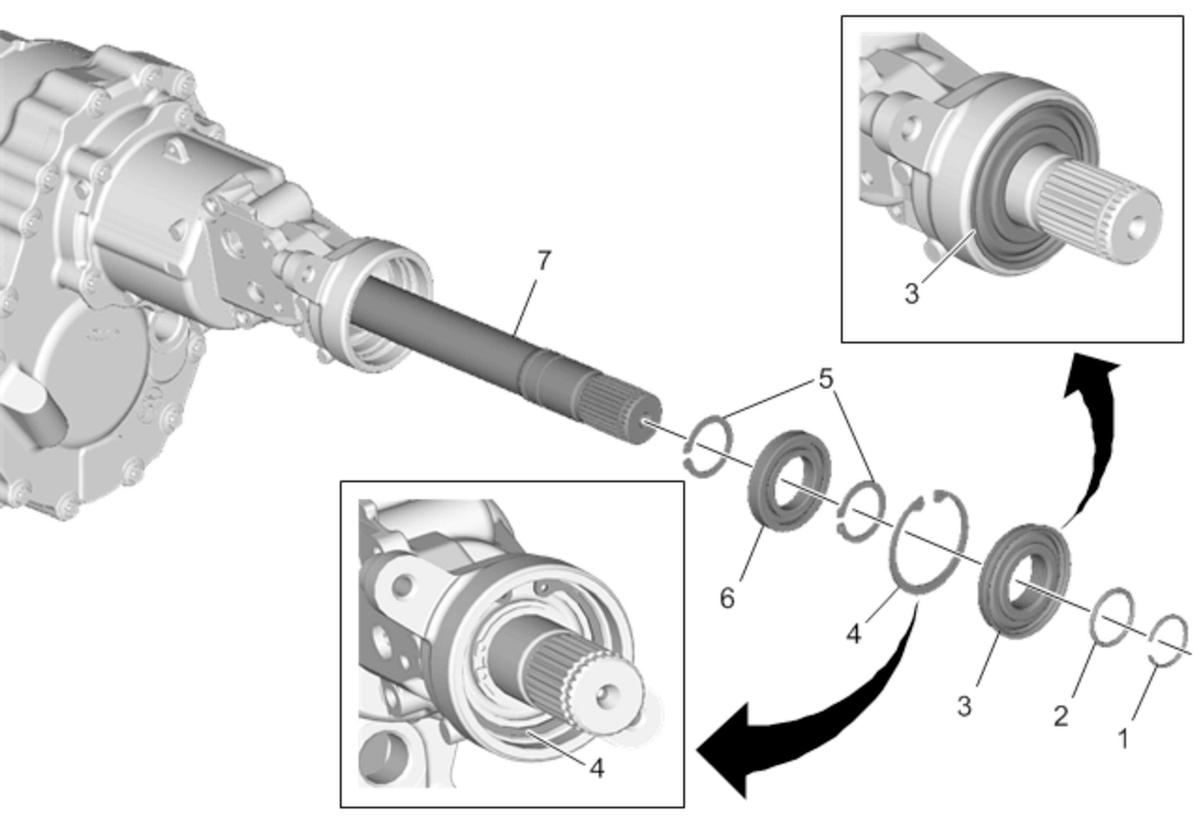

| Callout | Component Name |
|---|---|
| 1 | Power Transfer Unit Intermediate Drive Shaft Clip
NOTE:
Remove and DISCARD the retainer. |
| 2 | Power Transfer Unit Half Shaft Seal - O-Ring
NOTE:
Remove and DISCARD the O-ring seal. |
| 3 | Power Transfer Unit Intermediate Drive Shaft Seal
NOTE:
Remove seal with a thin flat putty knife or equivalent. Inserting the blade of the tool between the outside diameter of the seal and the extension housing surface. |
| 4 | Power Transfer Unit Intermediate Drive Shaft Bearing Retainer
CAUTION:
Do not nick, scratch or damage the sealing surface. The sealing surface is a machined surface. Damage to the machined surface can cause leakage. |
| 5 | Power Transfer Unit Intermediate Drive Shaft Bearing Retaining Ring[2x] |
| 6 | Power Transfer Unit Intermediate Drive Shaft Bearing
NOTE:
Use a press and press blocks to remove the bearing from the power transfer unit intermediate drive shaft. |
| 7 | Power Transfer Unit Intermediate Drive Shaft |
