K71 Transmission Control Module
 Courtesy of GENERAL MOTORS COMPANY
|

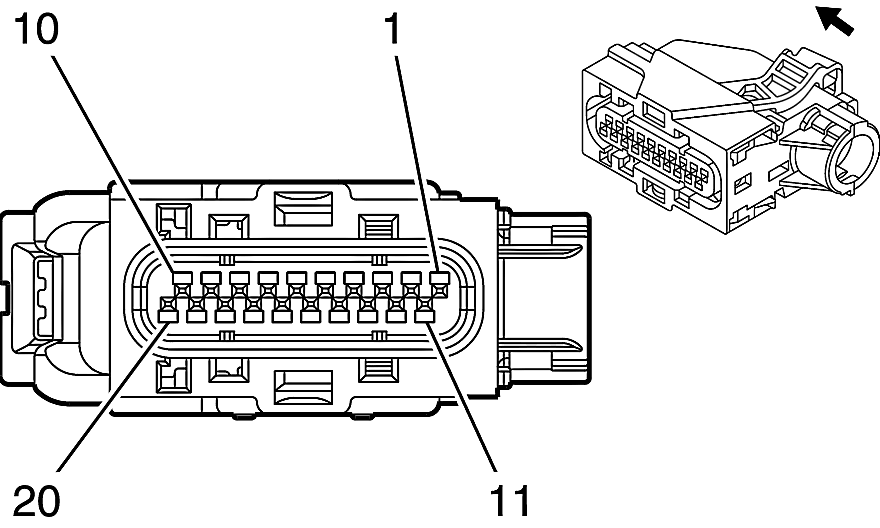

Connector Part Information
- Harness Type: Engine
- OEM Connector: 13570698
- Service Connector: 19151494
- Description: 20-Way F 150 GT Series, Sealed (D-BU with BK Case)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575400 |
J-35616-14 (GN) |
J-38125-553 |
15326267 |
Delphi 19 |
E |
1 |
| II |
13575400 |
J-35616-14 (GN) |
J-38125-553 |
15326267 |
Delphi 19 |
E |
4 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.75 |
BK/WH |
451 |
Signal Ground |
I |
- |
| 2 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
- |
| 3 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.5 |
BU |
2500 |
High Speed GMLAN Serial Data (+) 1 |
II |
- |
| 6 - 9 |
- |
- |
- |
Not Occupied |
- |
- |
| 10 |
0.75 |
RD/GN |
1840 |
Battery Positive Voltage |
I |
- |
| 11 |
- |
- |
- |
Not Occupied |
- |
- |
| 12 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
- |
| 13 |
0.5 |
VT/BK |
2139 |
Run/Crank Ignition 1 Voltage |
II |
- |
| 14 |
0.5 |
WH |
2501 |
High Speed GMLAN Serial Data (-) 1 |
II |
- |
| 15 |
0.5 |
VT/YE |
5985 |
Accessory Wakeup Serial Data |
II |
- |
| 16 - 17 |
- |
- |
- |
Not Occupied |
- |
- |
| 18 |
0.75 |
BK/WH |
451 |
Signal Ground |
I |
- |
| 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.5 |
WH/GY |
1786 |
Transmission Park/Neutral Signal 1 |
II |
- |
