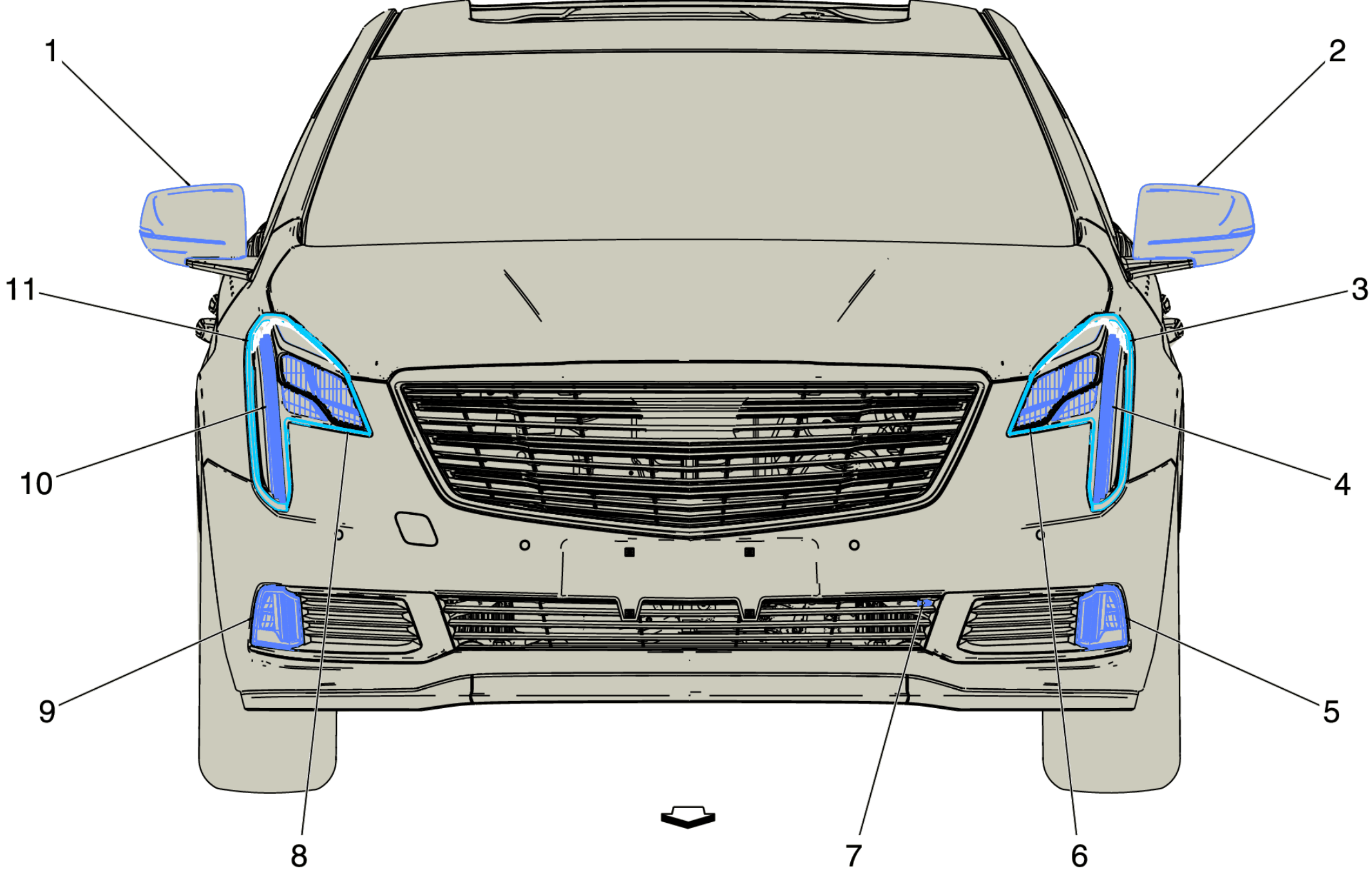

Front View of the Vehicle

GM5076187Courtesy of GENERAL MOTORS COMPANY
Front View of the Vehicle

Items
1. A9B Outside Rearview Mirror - Passenger
2. A9A Outside Rearview Mirror - Driver
3. E13LA Headlamp Assembly - Left
4. E4C Daytime Running Lamp - Left (T4F) E4C Daytime Running Lamp - Left
5. E4CA Daytime Running Lamp - Auxiliary Left (9H8) E4CA Daytime Running Lamp - Auxiliary Left (-T87-CZ2)E4CA Daytime Running Lamp - Auxiliary Left (T87+CZ2)E4CA Daytime Running Lamp - Auxiliary Left (T87-CZ2)
6. E4E Headlamp - Left High Beam (T4F) E4C Daytime Running Lamp - Left
7. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (-CZ2)B9 Ambient Air Temperature Sensor (CZ2)
8. E4F Headlamp - Right High Beam (T4F) E4F Headlamp - Right High Beam
9. E4DA Daytime Running Lamp - Auxiliary Right (9H8) E4DA Daytime Running Lamp - Auxiliary Right (-T87-CZ2)E4DA Daytime Running Lamp - Auxiliary Right (T87+CZ2)E4DA Daytime Running Lamp - Auxiliary Right (T87-CZ2)
10. E4D Daytime Running Lamp - Right (T4F)
11. E13RA Headlamp Assembly - Right
