K109 Frontview Camera Module (UGN/UVZ)

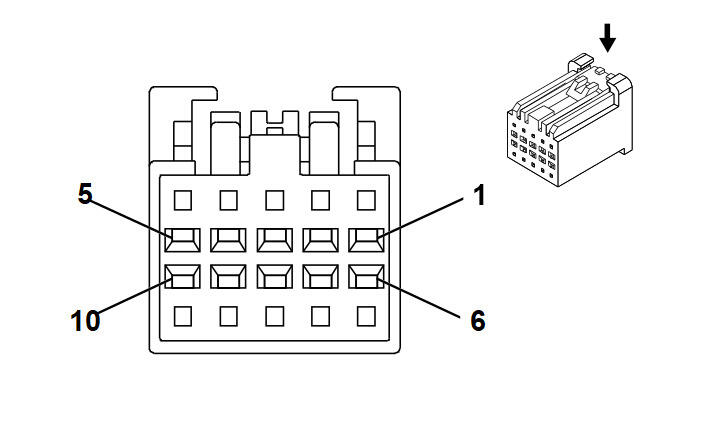

GM2840038

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Body
OEM Connector: 13581139
Service Connector: 13581139
Description: 10-Way F 0.64 Kaizen Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575742	J-35616-64B (LT BU)	J-38125-215A	SAIT-A03T-M064	Yazaki 14	P	P
II	13575867	J-35616-64B (LT BU)	J-38125-215A	SAIT-A03T-M064	Yazaki 14	P	P
III	Not Required	No Tool Required	J-38125-215A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	RD/BN	4940	Battery Positive Voltage	I	-
3	0.35	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	II	-
4	0.35	WH	3811	High Speed GMLAN Serial Data (-) 4	II	-
5	0.5	BK	850	Ground	I	-
6	0.35	WH	2501	High Speed GMLAN Serial Data (-) 1	III	-
7	0.35	BU	2500	High Speed GMLAN Serial Data (+) 1	III	-
8	0.5	BU/VT	3813	High Speed GMLAN Serial Data (+) 4	I	-
9	0.5	WH	3811	High Speed GMLAN Serial Data (-) 4	I	-
10	0.35	GY/VT	3808	Front Object Sensor Control 2	II	-
