Installation Procedure

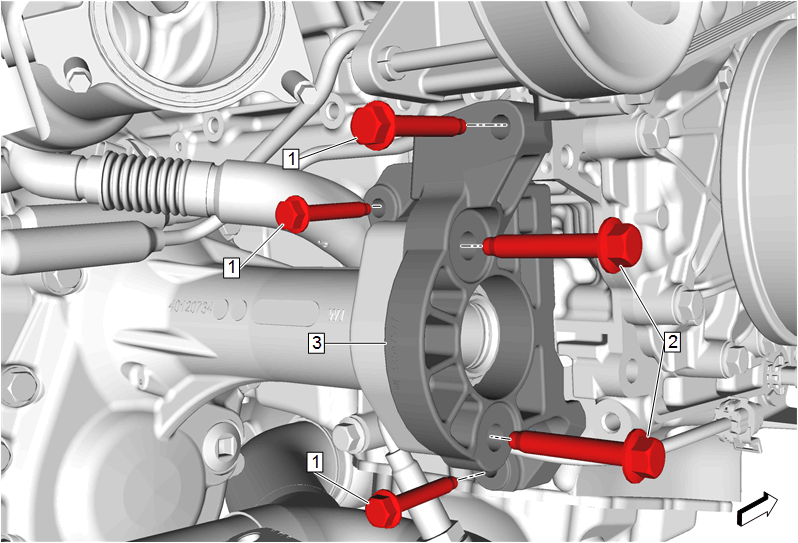

  1. GM5040078Courtesy of GENERAL MOTORS COMPANY

    Position the transfer case bracket (3) to the transfer case.

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 2 transfer case rear bolts (2) at the transfer case and tighten to 58 N.m (43 lb ft).
  3. Install the 3 transfer case bracket bolts (1) at the transfer case and tighten to 22 N.m (16 lb ft).
  4. Install the right front wheel drive shaft. Front Wheel Drive Shaft Replacement - Right Side (FWD)Front Wheel Drive Shaft Replacement - Right Side (AWD)
