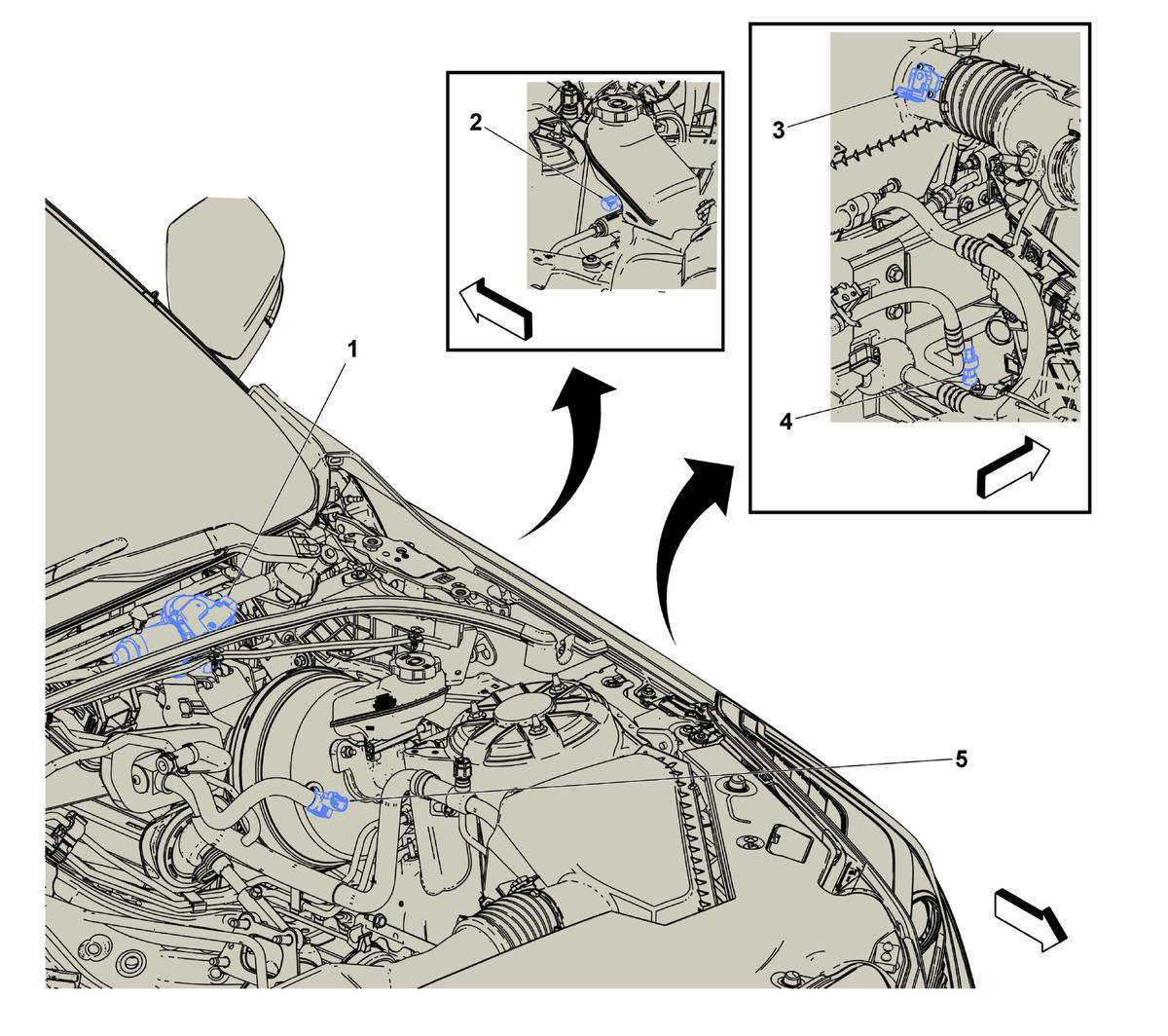

Engine Compartment Components Left

GM4939228Courtesy of GENERAL MOTORS COMPANY
Items
1. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor
4. B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor
5. B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor
