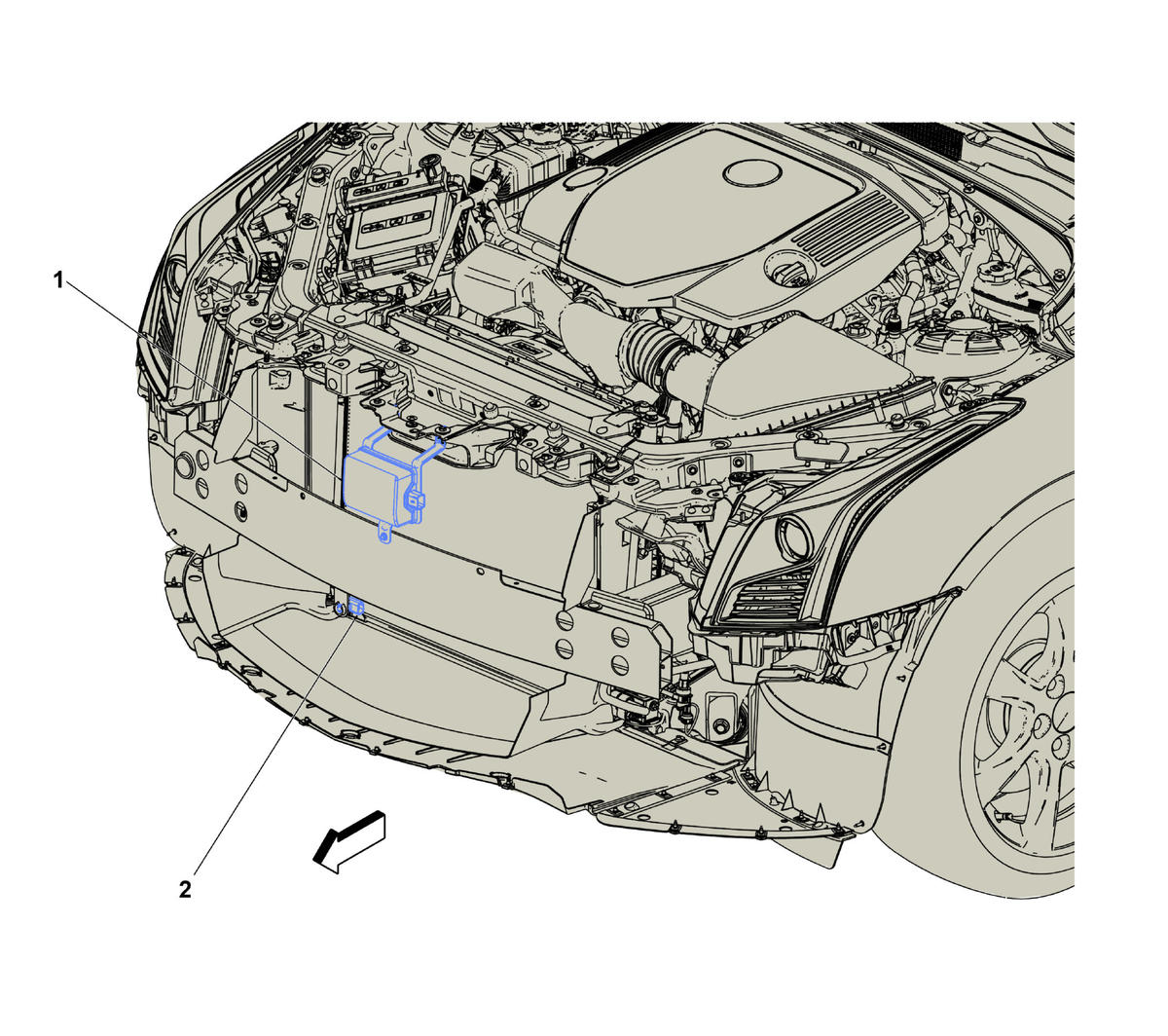

Front Bumper Components (-1SV)

GM4939226Courtesy of GENERAL MOTORS COMPANY
Items
1. B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range
2. B9 Ambient Air Temperature Sensor B9 Ambient Air Temperature Sensor (LF4) , or B9 Ambient Air Temperature Sensor (LF4/LGX) , or B9 Ambient Air Temperature Sensor (LT4)
