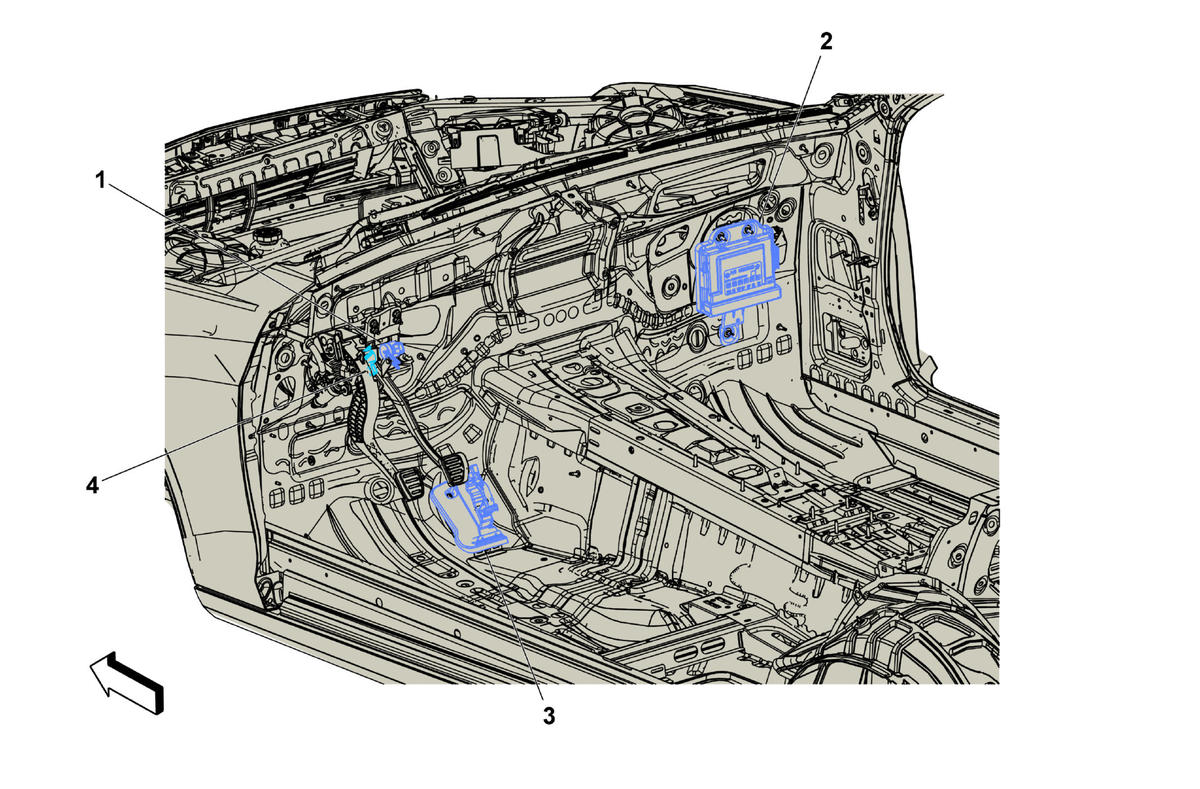

Front Bulkhead of Passenger Compartment Components

Courtesy of GENERAL MOTORS COMPANY

Items
1. B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor
2. K9 Body Control Module K9 Body Control Module X1 , or K9 Body Control Module X2 , or K9 Body Control Module X3 , or K9 Body Control Module X4 , or K9 Body Control Module X5 , or K9 Body Control Module X6 , or K9 Body Control Module X7
3. B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor
4. B25B Clutch Pedal Position Sensor (M3L/MG9) B25B Clutch Pedal Position Sensor
