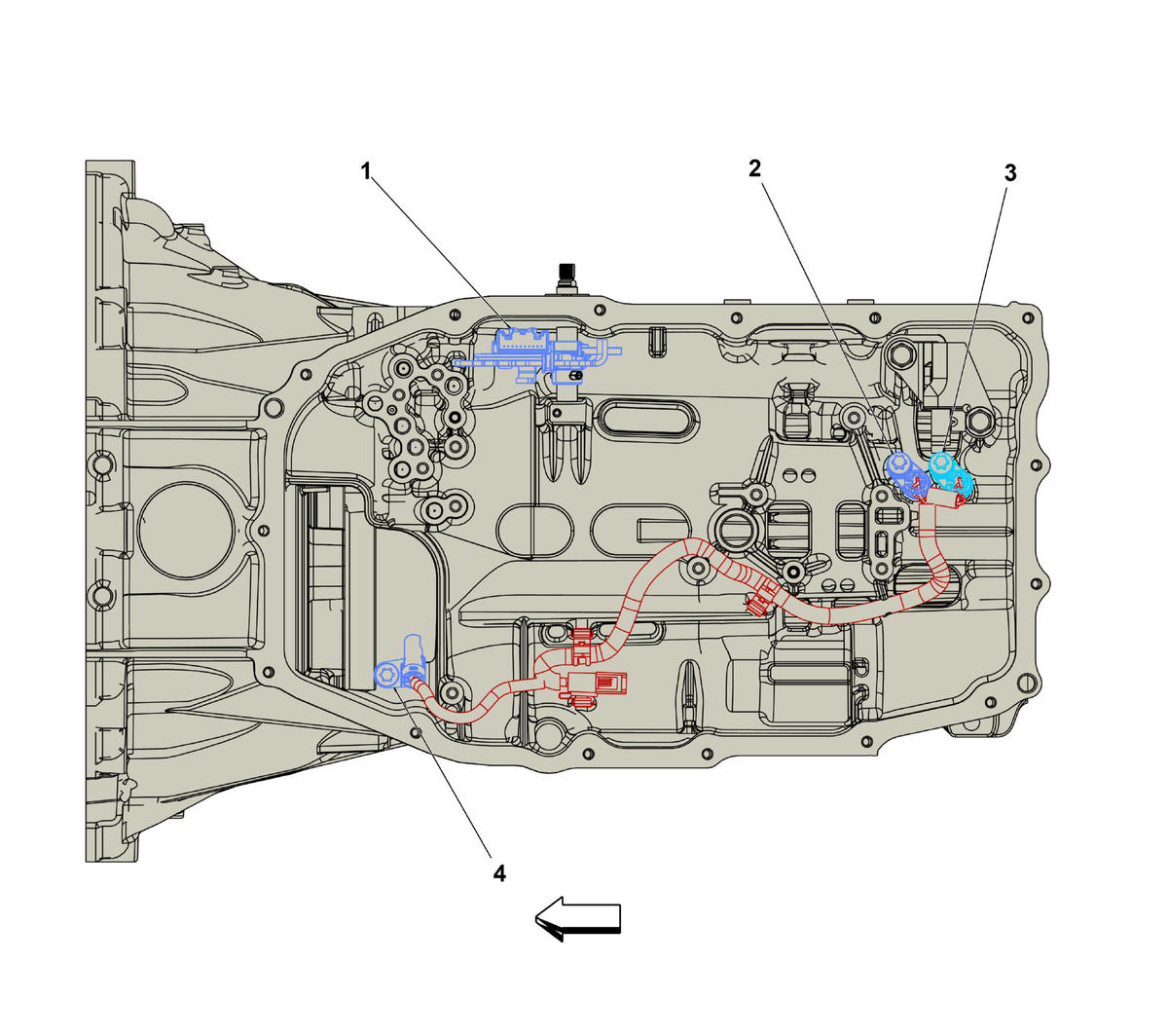

Automatic Transmission Case Components (M5N/M5U)

GM4939274Courtesy of GENERAL MOTORS COMPANY
Items
1. B15 Transmission Internal Mode Switch (M5N/M5U) B15 Transmission Internal Mode Switch
2. B14D Transmission Intermediate Shaft Speed Sensor (M5N/M5U)
3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor (M5N/M5U)
