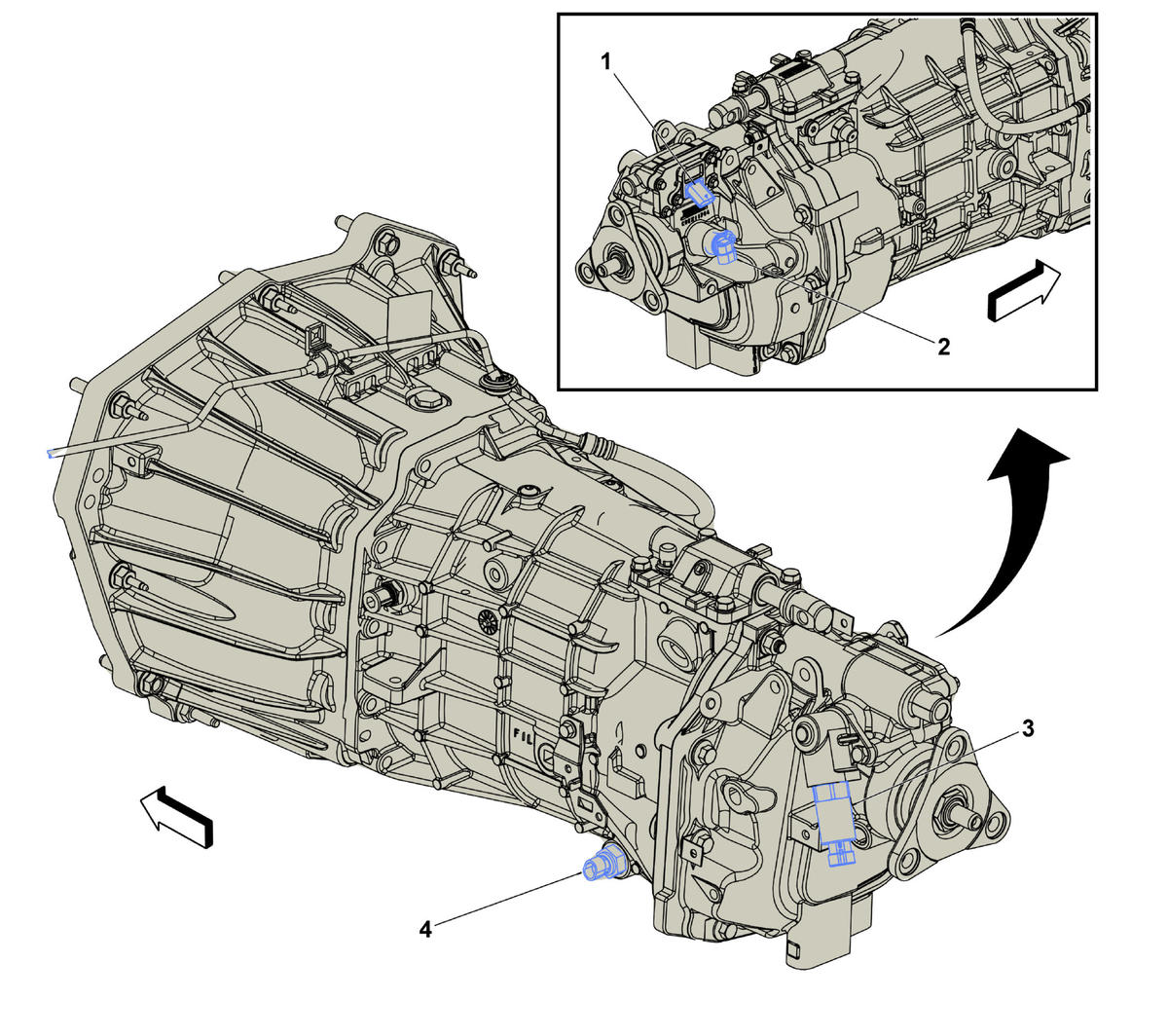

Manual Transmission Components (MG9)

GM4939256Courtesy of GENERAL MOTORS COMPANY
Items
1. B227 Gear Position Sensor (MG9) B227 Gear Position Sensor
2. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor
3. M47 Reverse Inhibit Solenoid Actuator (MG9) M47 Reverse Inhibit Solenoid Actuator
4. B173 Manual Transmission Fluid Temperature Sensor (M3L/MG9) B173 Manual Transmission Fluid Temperature Sensor
