K134D Seat Bolster Memory Control Module - Driver
 Courtesy of GENERAL MOTORS COMPANY
|

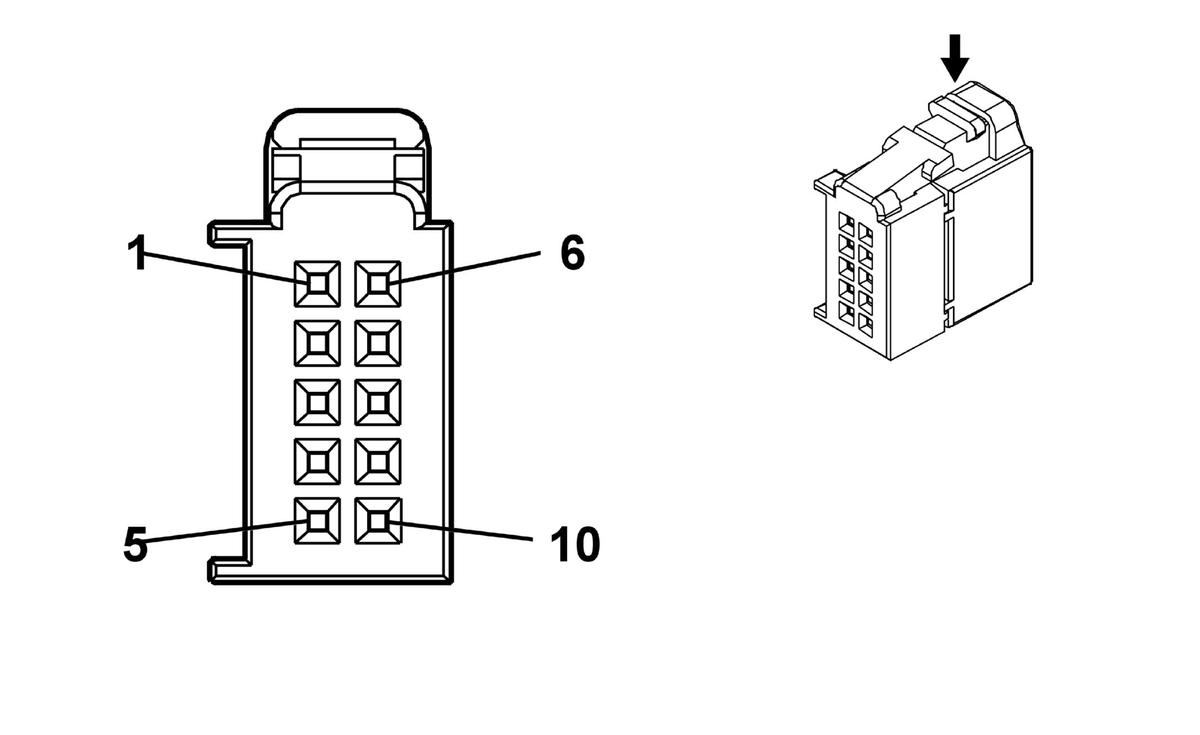

Connector Part Information
- Harness Type: Driver Seat
- OEM Connector: 1-1670990-1
- Service Connector: Service by Harness - See Part Catalog
- Description: 10-Way F 0.64 MQS Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
Not Available |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
RD/WH |
2040 |
Battery Positive Voltage |
I |
- |
| 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
- |
BK |
2150 |
Ground |
I |
- |
| 4 - 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
- |
BN |
4505 |
Driver Lumbar Pump Motor Power |
I |
- |
| 8 |
- |
GN/WH |
7530 |
Local Interconnect Network Serial Data Bus 8 |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
