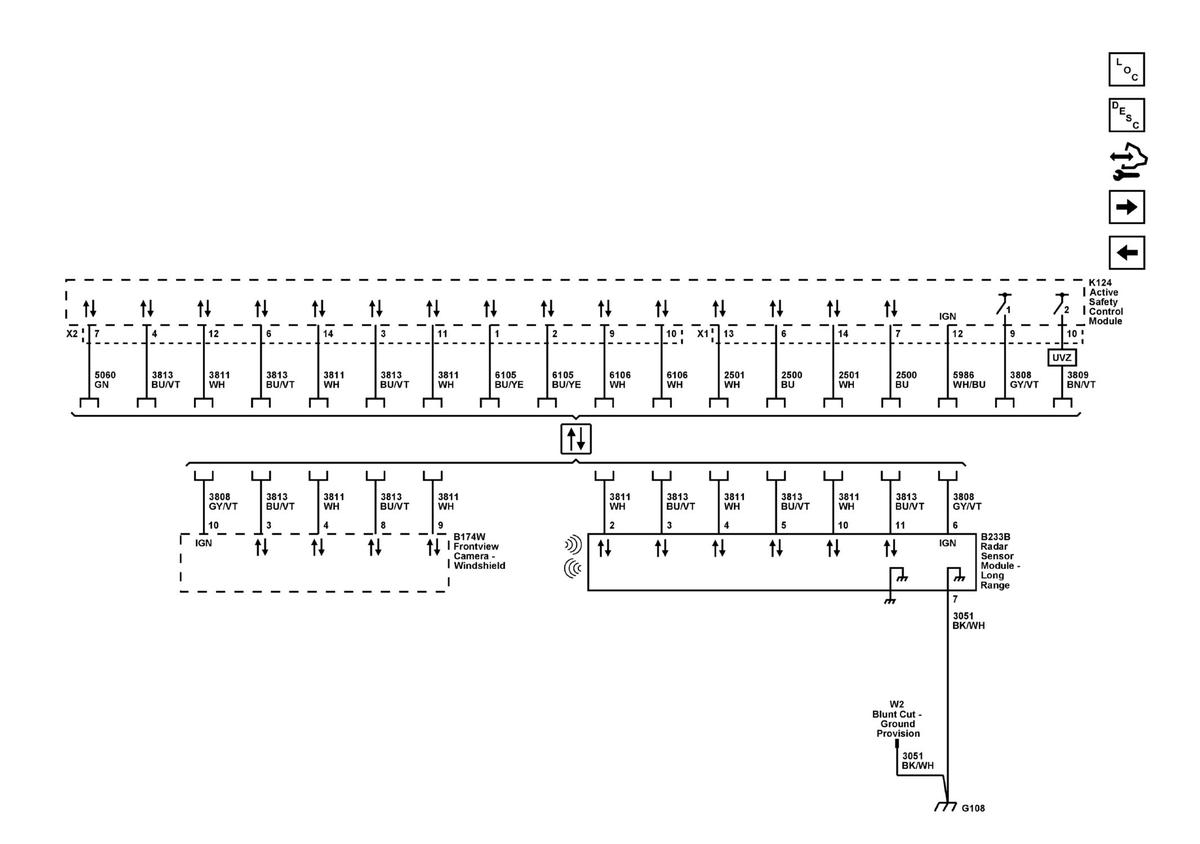

Collision Avoidance - Serial Data Camera, Module and Long Range Radar (UGN)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
