Rear Compartment Lid Latch Striker Replacement

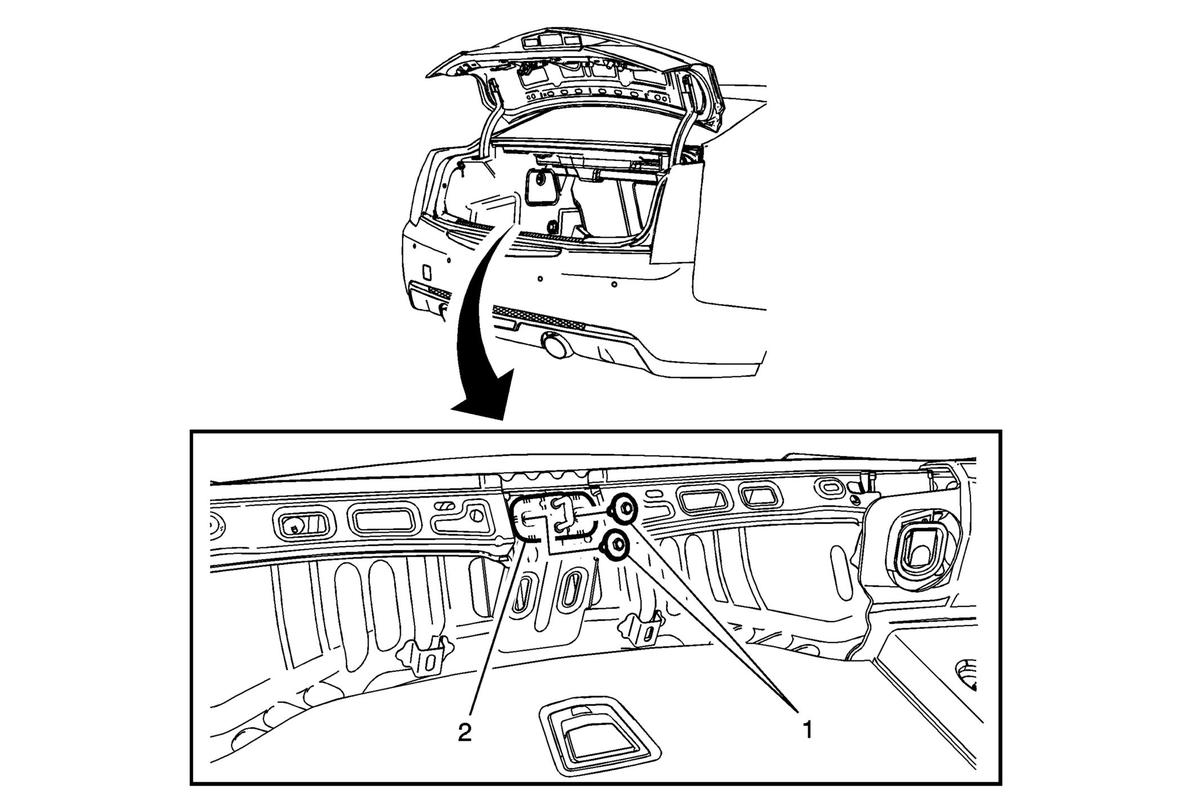

GM2810404Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
1 Rear Compartment Lid Latch Striker Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Procedure
Use a grease pencil to outline the striker before removing the bolts.
Tighten
9 N.m (80 lb in)
2 Rear Compartment Lid Latch Striker
Procedure
Adjust the rear compartment lid, if needed. Refer to Rear Compartment Lid Adjustment (ATS) , or Rear Compartment Lid Adjustment (ATS-V) .
