Low Frequency Instrument Panel Antenna Replacement

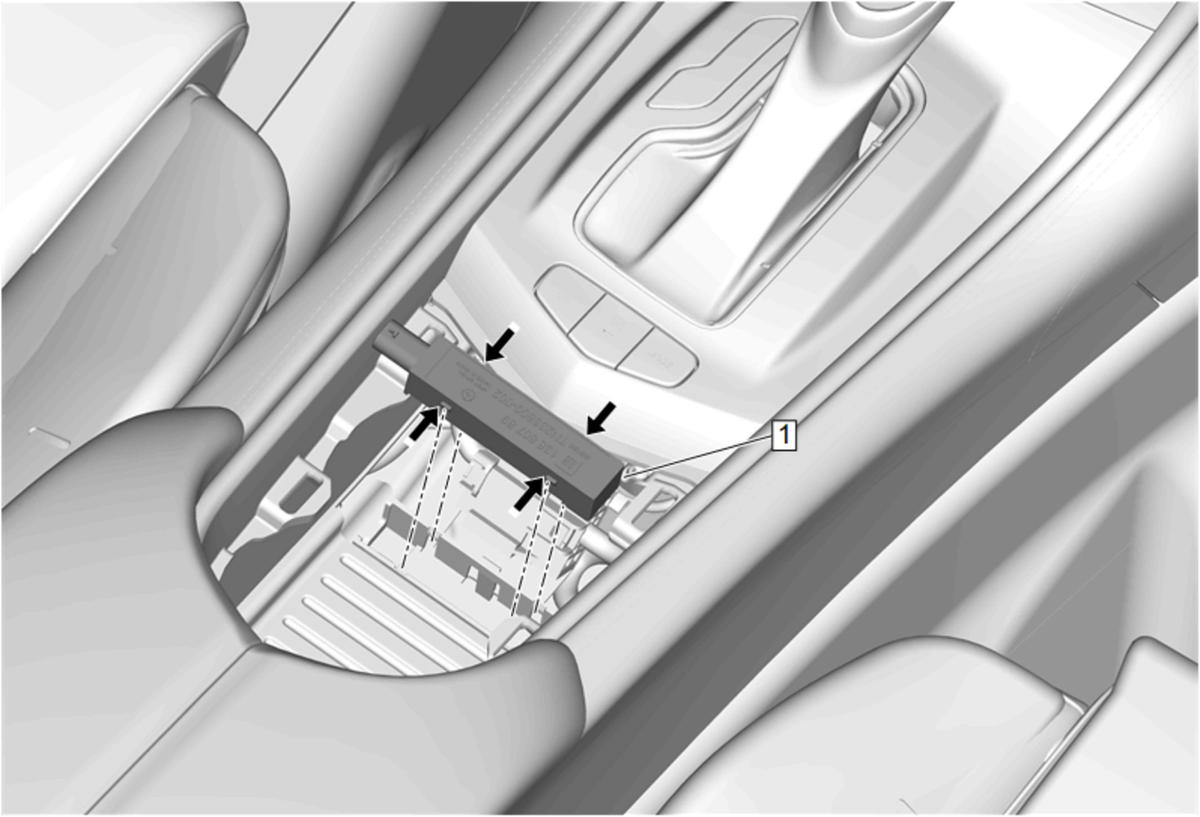

GM5021386Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Cup Holder Plate Replacement
1 Low Frequency Instrument Panel Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
