Instrument Panel Components - Left Side ((KL9+M3L)/TR6/UV6)

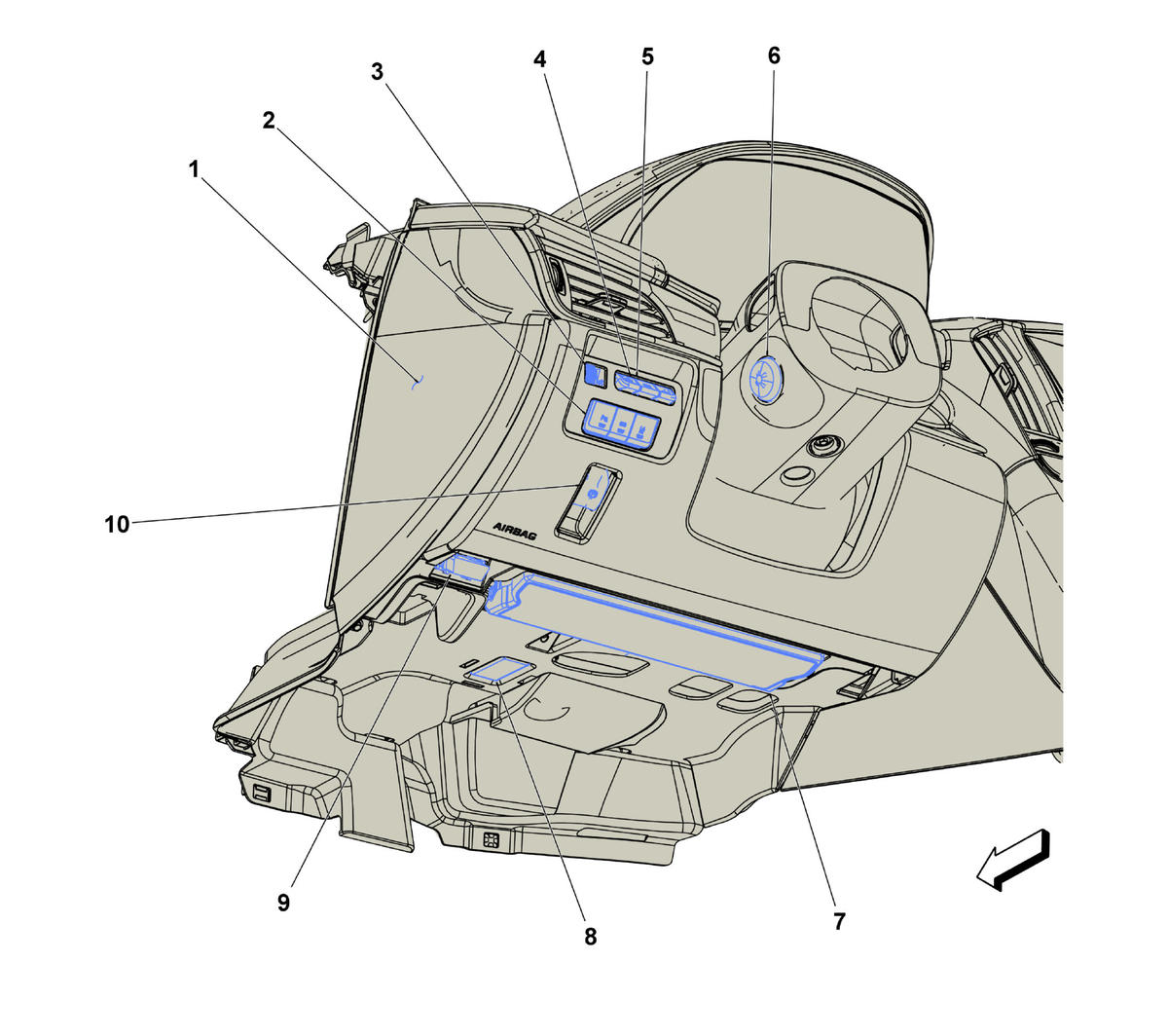

GM4939278Courtesy of GENERAL MOTORS COMPANY
Items
1. X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X0X51A Fuse Block - Instrument Panel (-B3T)X51A Fuse Block - Instrument Panel (B3T)X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel X1 (M8)
2. S48A Multifunction Switch - Instrument Panel (UD5/UD7) S48A Multifunction Switch - Instrument Panel (-TR6/UV6)S48A Multifunction Switch - Instrument Panel (TR6/UV6)
3. S36 Instrument Panel Dimmer Switch S36 Instrument Panel Dimmer Switch
4. S27 Head-Up Display Switch (UV6) S27 Head-Up Display Switch
5. S42 Headlamp Leveling Switch (TR6)
6. S71 Steering Column Tilt and Telescope Switch (N38) S71 Steering Column Tilt and Telescope Switch
7. F114D Knee Air Bag - Driver F114D Knee Air Bag - Driver
8. E8J Instrument Panel Courtesy Lamp - Left E8J Instrument Panel Courtesy Lamp - Left
9. X84 Data Link Connector X84 Data Link Connector
10. S91 Park Brake Control Switch S91 Park Brake Control Switch (J77+M3L/MG9)S91 Park Brake Control Switch (J77+M5N)S91 Park Brake Control Switch (J77-M3L-MG9)
