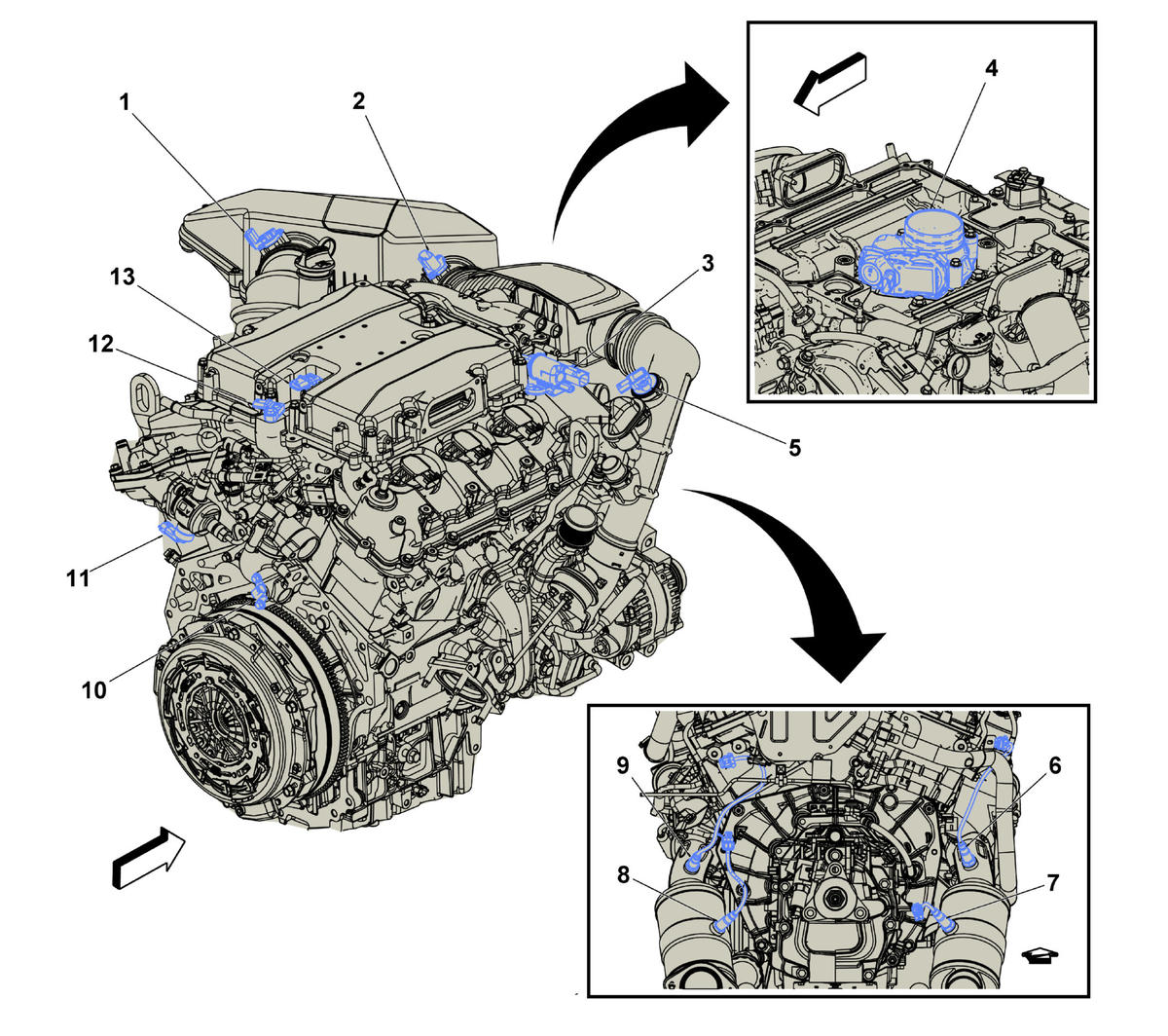

| 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2. B75B Mass Air Flow/Intake Air Temperature Sensor (LF4) B75B Mass Air Flow/Intake Air Temperature Sensor |
| 3. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 4. Q38 Throttle Body Q38 Throttle Body |
| 5. B17 Barometric Pressure Sensor (LF4) B17 Barometric Pressure Sensor |
| 6. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF4/LGX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LF4) |
| 7. B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF4/LGX) B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LF4) |
| 8. B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF4/LGX) B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LF4) |
| 9. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF4/LGX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LF4) |
| 10. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor (LF4/LGX/LTG) |
| 11. G18 High Pressure Fuel Pump G18 High Pressure Fuel Pump (LF4) |
| 12. B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LF4)
, or B74 Manifold Absolute Pressure Sensor (LF4/LXG) |
| 13. B111B Turbocharger Boost/Intake Air Temperature Sensor B111B Turbocharger Boost/Intake Air Temperature Sensor |
