Ride Control Switch Replacement

Courtesy of GENERAL MOTORS COMPANY

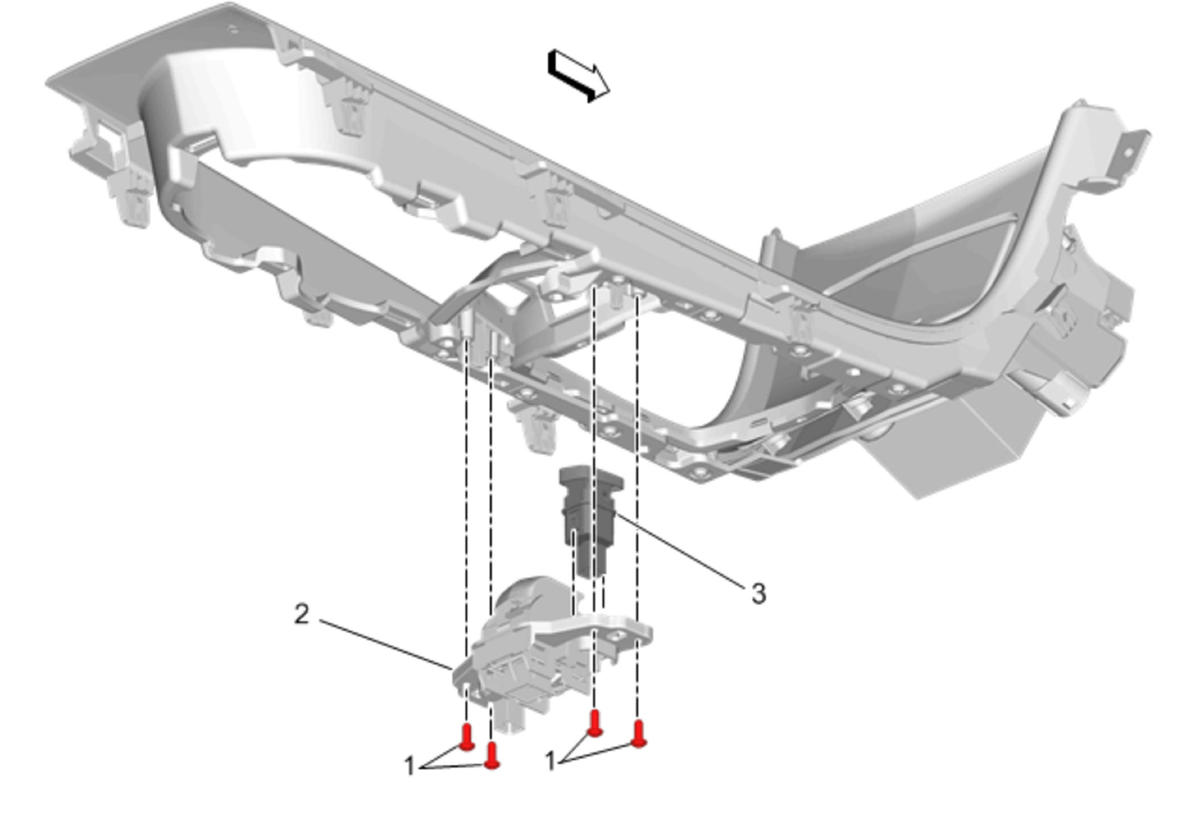

Callout	Component Name
Preliminary Procedure Front Floor Console Trim Plate Replacement .
1	Front Floor Console Trim Plate Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten .75 N.m (7 lb in)
2	Front Floor Console Bracket
3	Ride Control Switch Procedure Disconnect the electrical connector. Use a flat bladed plastic trim tool.
