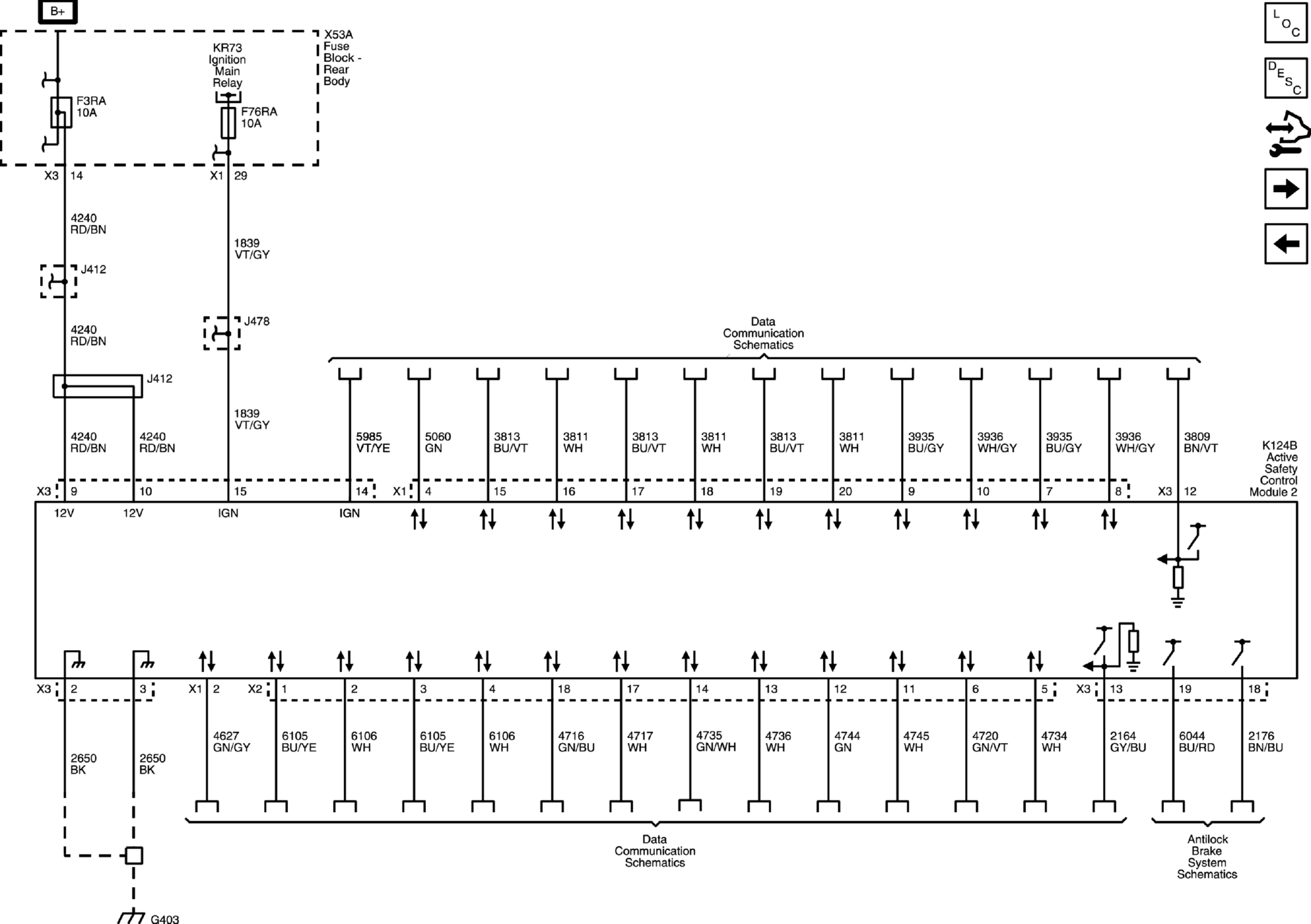

Collision Mitigation - Active Safety Control Module 2 Power, Ground, Serial Data, and Subsystem References
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
