Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

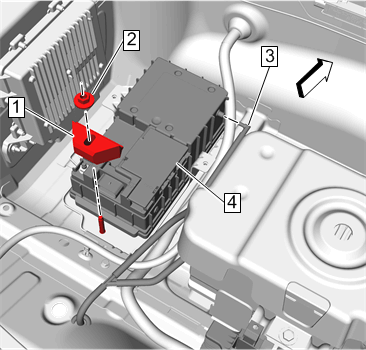

Multifunction Energy Storage Capacitor Control Module (4) - Install
Multifunction Energy Storage Capacitor Control Module Retainer (1) - Install

CAUTION:

Refer to Fastener Caution .

Multifunction Energy Storage Capacitor Control Module Retainer Nut (2) - Install and tighten 22 N.m (16 lb ft)
Vent Tube (3) - Install
Courtesy of GENERAL MOTORS COMPANY

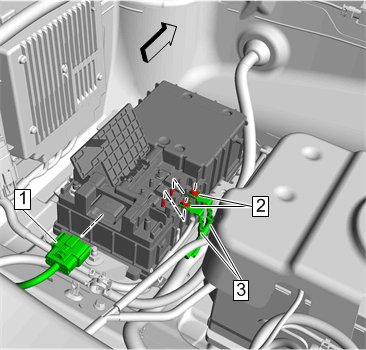

Electrical Connector (1) - Connect
Body Harness Terminal (3) - Install [2x]
Body Wiring Harness Terminal Nut (2) - Install and tighten [2x] 4.5 N.m (40 lb in)
Courtesy of GENERAL MOTORS COMPANY

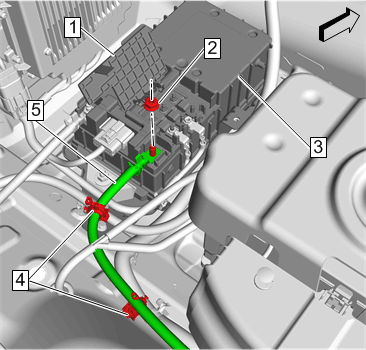

Auxiliary Battery Positive Cable (5) - Install
Auxiliary Battery Positive Cable Fastener (2) @ Multifunction Energy Storage Capacitor Control Module (3) - Install and tighten 15 N.m (11 lb ft)
Retainer Clip (4) - Engage [2x]
Terminal Cover (1) @ Multifunction Energy Storage Capacitor Control Module (3) - Close
Courtesy of GENERAL MOTORS COMPANY

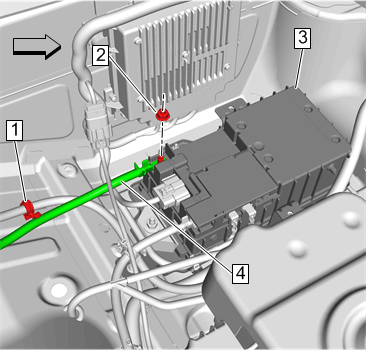

Auxiliary Battery Negative Cable (4) - Install
Auxiliary Battery Negative Cable Fastener (2) @ Multifunction Energy Storage Capacitor Control Module (3) - Install and tighten 15 N.m (11 lb ft)
Retainer Clip (1) - Engage
Courtesy of GENERAL MOTORS COMPANY

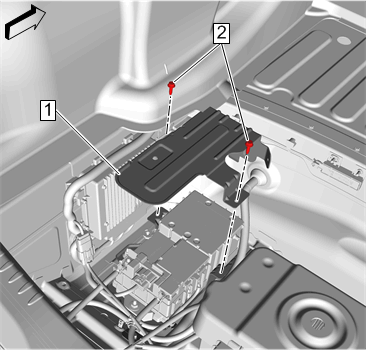

Multifunction Energy Storage Capacitor Control Module Bracket Retainer (1) - Install
Multifunction Energy Storage Capacitor Control Module Bracket Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

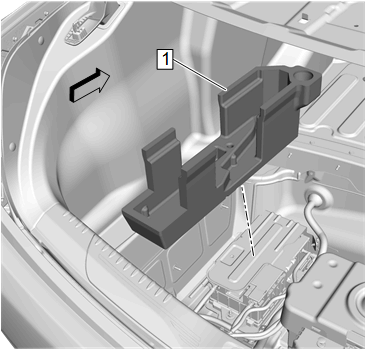

Install the jack stowage container. (1)
Courtesy of GENERAL MOTORS COMPANY

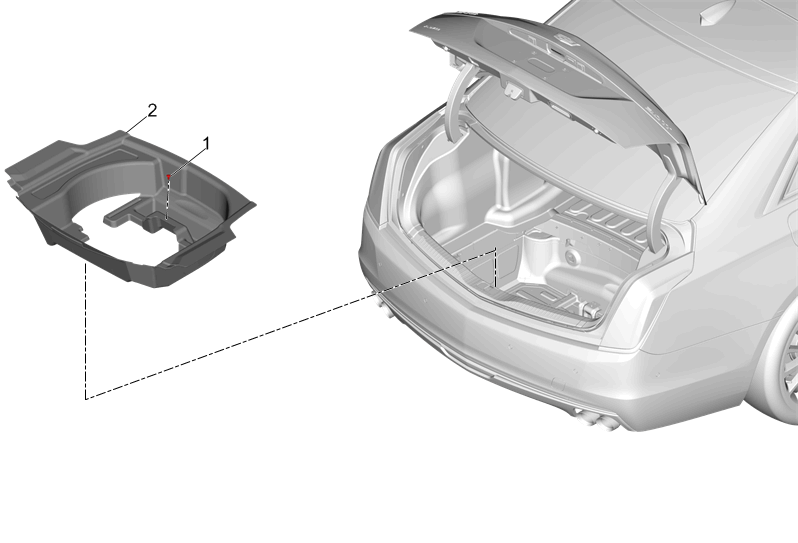

Rear Compartment Floor Stowage Compartment Cover (2) - Install - Rear Compartment Floor Stowage Compartment Cover Replacement
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
Install the spare tire jack.
Program the Multifunction Energy Storage Capacitor Control Module. Control Module References
