Floor Console Components (4 of 5)

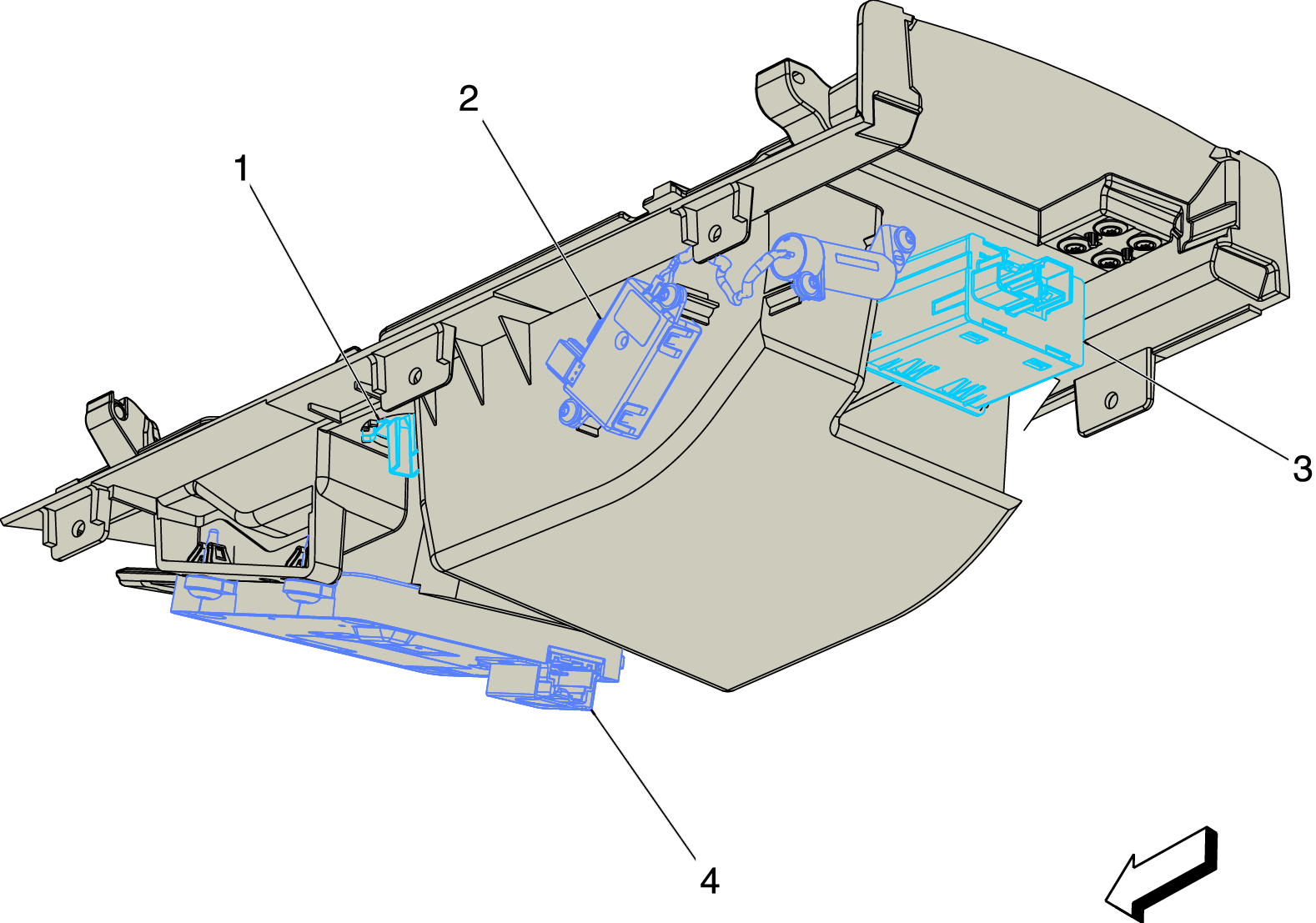

GM5335773Courtesy of GENERAL MOTORS COMPANY
Floor Console Components (4 of 5)

Items
1. X80F Accessory Power Receptacle - Front X80F Accessory Power Receptacle - Front (-DUJ/SAO)
2. K89 Immobilizer Control Module K89 Immobilizer Control Module
3. X20 Memory Card Receptacle (XVR) X20 Memory Card Receptacle X1 (MCR)X20 Memory Card Receptacle X1 (UV2)X20 Memory Card Receptacle X2 (XVR)
4. T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module
