Automatic Transmission Case Components

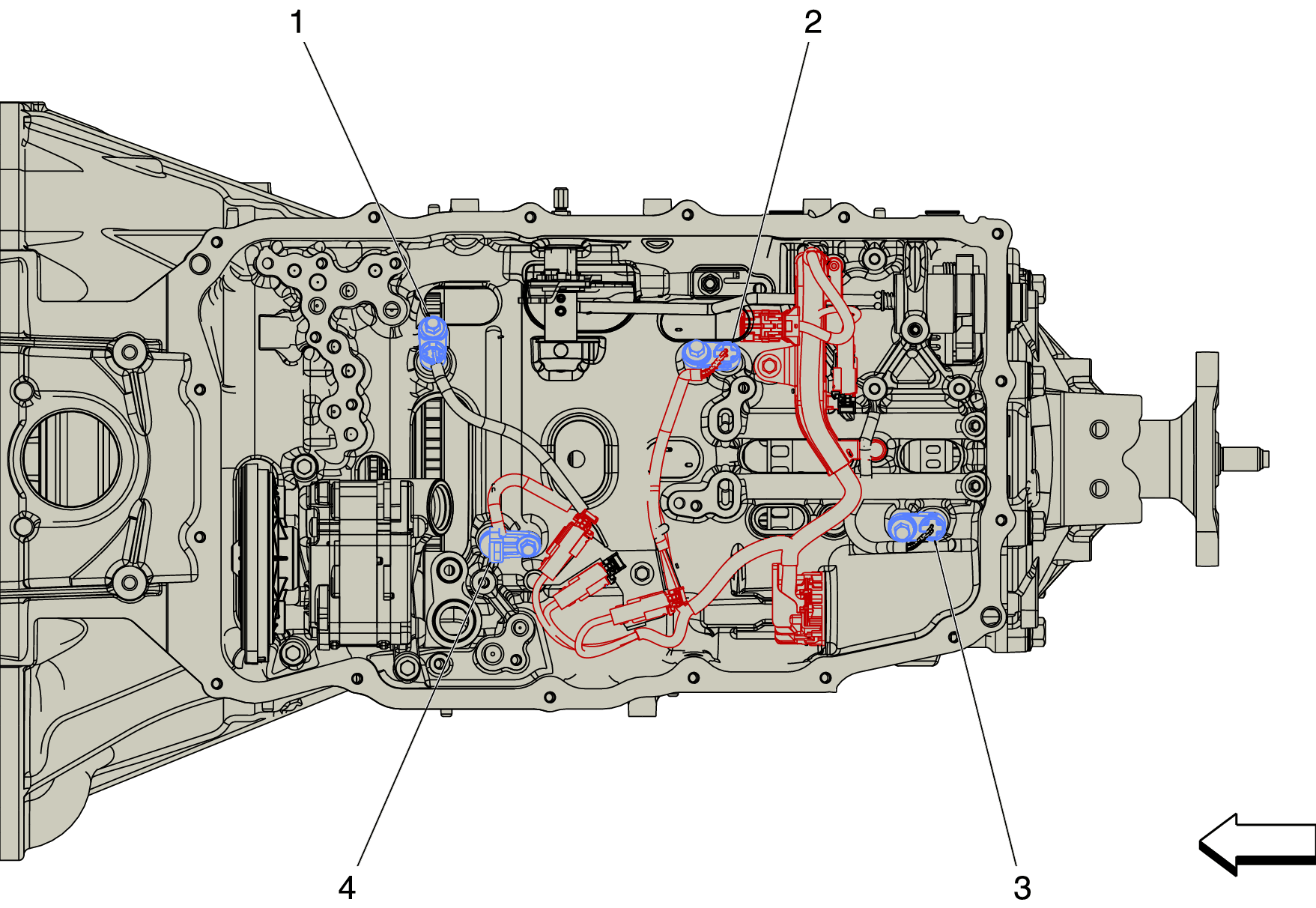

GM5392639Courtesy of GENERAL MOTORS COMPANY
Automatic Transmission Case Components

Items
1. B14DB Transmission Intermediate Speed Sensor 2
2. B14DA Transmission Intermediate Speed Sensor 1
3. B14A Transmission Output Shaft Speed Sensor B14A Transmission Output Shaft Speed Sensor
4. B14C Transmission Input Shaft Speed Sensor
