Engine Control Module Bracket Replacement

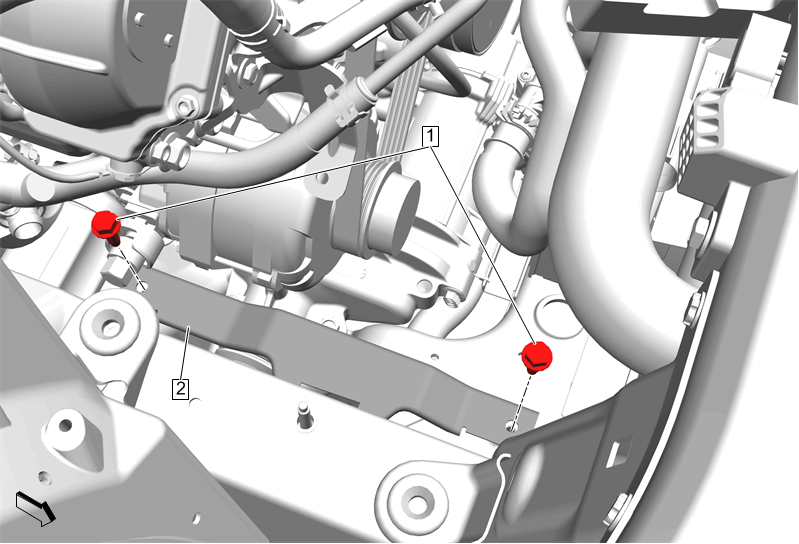

GM5204421Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Engine Control Module Replacement
1 Engine Control Module Bracket Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Engine Control Module Bracket
