Installation Procedure

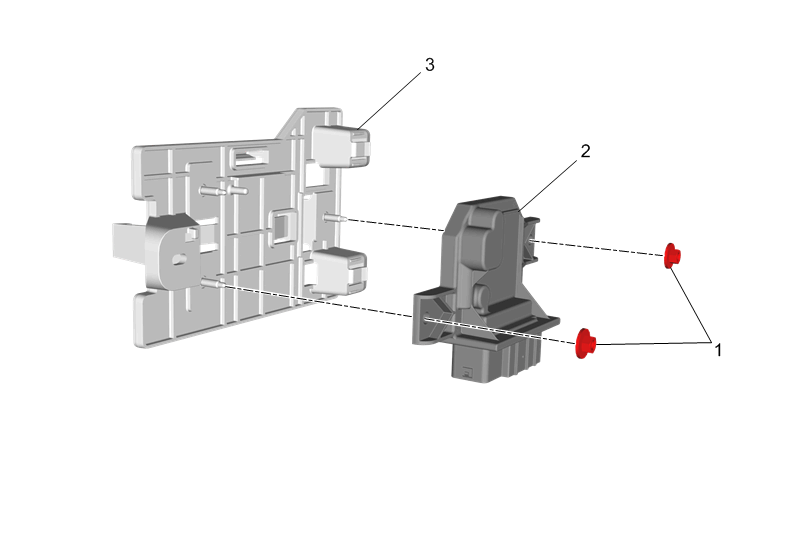

  1. GM5081042Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module (2) @ Fuel Pump Power Control Module Bracket (3) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Fuel Pump Power Control Module Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)
  3. GM5081041Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install the fuel pump power control module and bracket as an assembly.

    Fuel Pump Power Control Module Bracket (2) - Install

  4. Fuel Pump Power Control Module Bracket Bolt (1) - Install and tighten 9 N.m (80 lb in)
  5. Connect the fuel pump power control module electrical connector.
  6. {If equipped} Digital Map Module - Install - Digital Map Module Replacement
  7. Rear Compartment Side Trim-Right Side - Install - Rear Compartment Side Trim Replacement - Right Side
