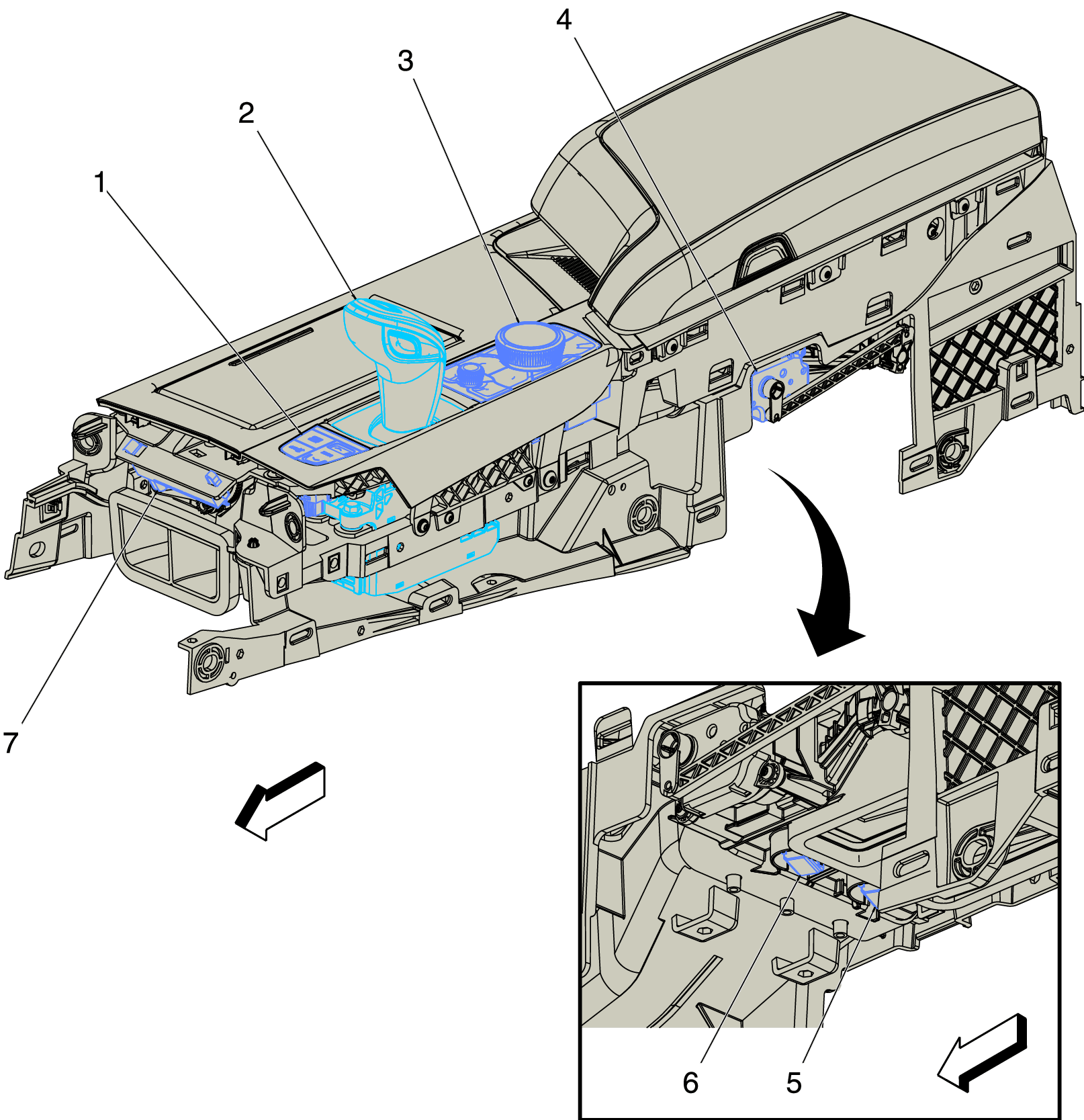

Floor Console Components (2 of 5)

GM5335775Courtesy of GENERAL MOTORS COMPANY
Floor Console Components (2 of 5)

Items
1. S48E Multifunction Switch - Center Console
2. A97 Transmission Range Selector Controls A97 Transmission Range Selector Controls
3. S165 Infotainment Control Switch S165 Infotainment Control Switch
4. Q66 Passenger Compartment Heater Coolant Control Valve
5. B7TR Air Temperature Sensor - Duct Right Lower Auxiliary (C24) B7TR Air Temperature Sensor - Duct Right Lower Auxiliary
6. B7TL Air Temperature Sensor - Duct Left Lower Auxiliary (C24) B7TL Air Temperature Sensor - Duct Left Lower Auxiliary
7. T10B Keyless Entry Antenna - Instrument Panel Compartment T10B Keyless Entry Antenna - Instrument Panel Compartment
