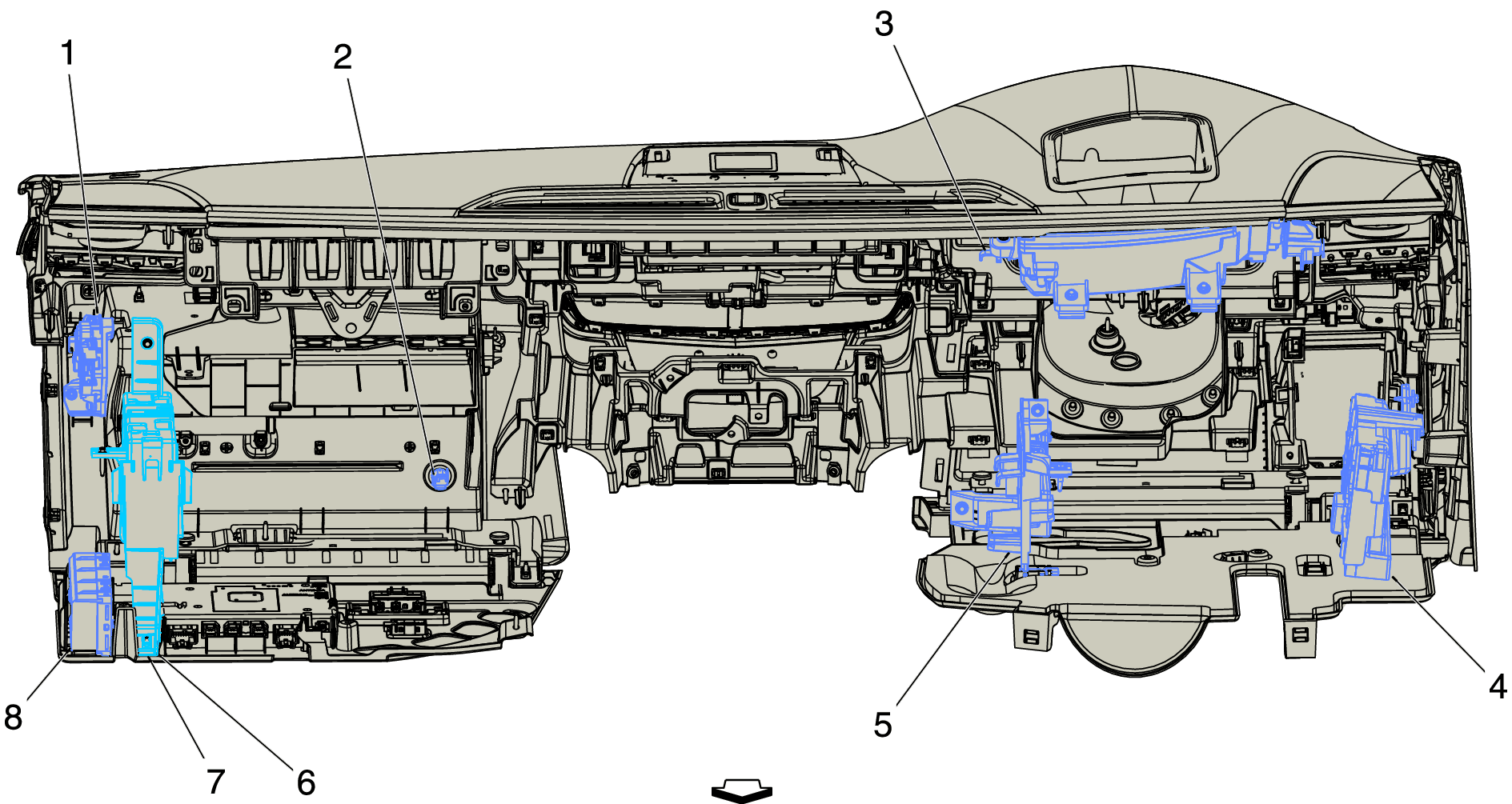

Instrument Panel Components - Rear

Courtesy of GENERAL MOTORS COMPANY

Items
1. M91 Instrument Panel Compartment Door Unlatch Actuator M91 Instrument Panel Compartment Door Unlatch Actuator
2. E27 Instrument Panel Compartment Lamp E27 Instrument Panel Compartment Lamp
3. P29 Head-Up Display (UV6) P29 Head-Up Display X1 (UV6)P29 Head-Up Display X2 (UV6)
4. K9 Body Control Module K9 Body Control Module X1 K9 Body Control Module X2 K9 Body Control Module X3 K9 Body Control Module X4 K9 Body Control Module X5 K9 Body Control Module X6 K9 Body Control Module X7
5. K172 Night Vision Camera Control Module (UV3) K172 Night Vision Camera Control Module X1 (UV3)K172 Night Vision Camera Control Module X2 (UV3)
6. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1/UI3+UKL)K73 Telematics Communication Interface Control Module X5 (UE1+(CZ2/EF7/Z49/C4E))K73 Telematics Communication Interface Control Module X7 (UE1/UI3)
7. A11 Radio A11 Radio X1 A11 Radio X2 A11 Radio X4 A11 Radio X5 A11 Radio X6 A11 Radio X9 (U2Q)
8. K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4
