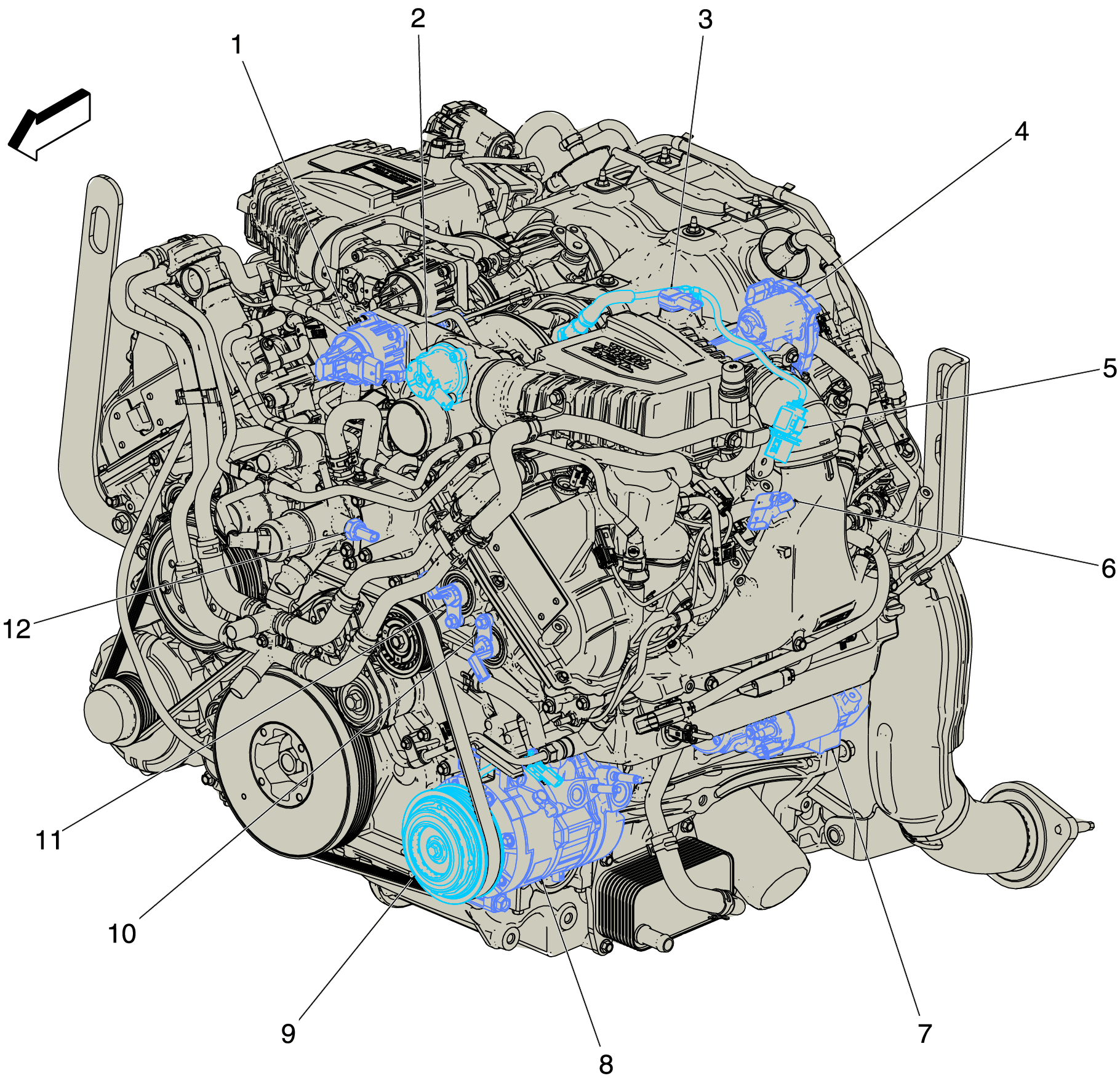

Engine Components - Left Front (LTA)

Courtesy of GENERAL MOTORS COMPANY

Items
1. M128A Turbocharger Wastegate Actuator - Bank 1 (LTA) M128A Turbocharger Wastegate Actuator - Bank 1
2. Q40A Turbocharger 1 Bypass Solenoid Valve (LGW) Q40A Turbocharger 1 Bypass Solenoid Valve (LGW)Q40A Turbocharger 1 Bypass Solenoid Valve (LTA)
3. B341A Throttle Inlet Absolute Pressure Sensor - Bank 1 (LTA) B341A Throttle Inlet Absolute Pressure Sensor - Bank 1
4. B52D Heated Oxygen Sensor - Bank 1 Sensor 2 B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LGW/LGX)B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LTA)
5. Q38A Throttle Body - Bank 1 (LTA) Q38A Throttle Body - Bank 1
6. B52C Heated Oxygen Sensor - Bank 1 Sensor 1 B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGW)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LGX)B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LTA)
7. B65A Intake Manifold Pressure and Air Temperature Sensor - Bank 1 (LTA) B65A Intake Manifold Pressure and Air Temperature Sensor - Bank 1
8. M64 Starter Motor (LGW/LGX/LSY) M64 Starter Motor X1 M64 Starter Motor X2
9. G1 A/C Compressor G1 A/C Compressor (LGW/LGX/LSY/LTA)
10. Q2 A/C Compressor Clutch
11. Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LGW/LGX/LTA) Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
12. Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LGW/LGX/LTA) Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
13. B34 Engine Coolant Temperature Sensor B34 Engine Coolant Temperature Sensor
