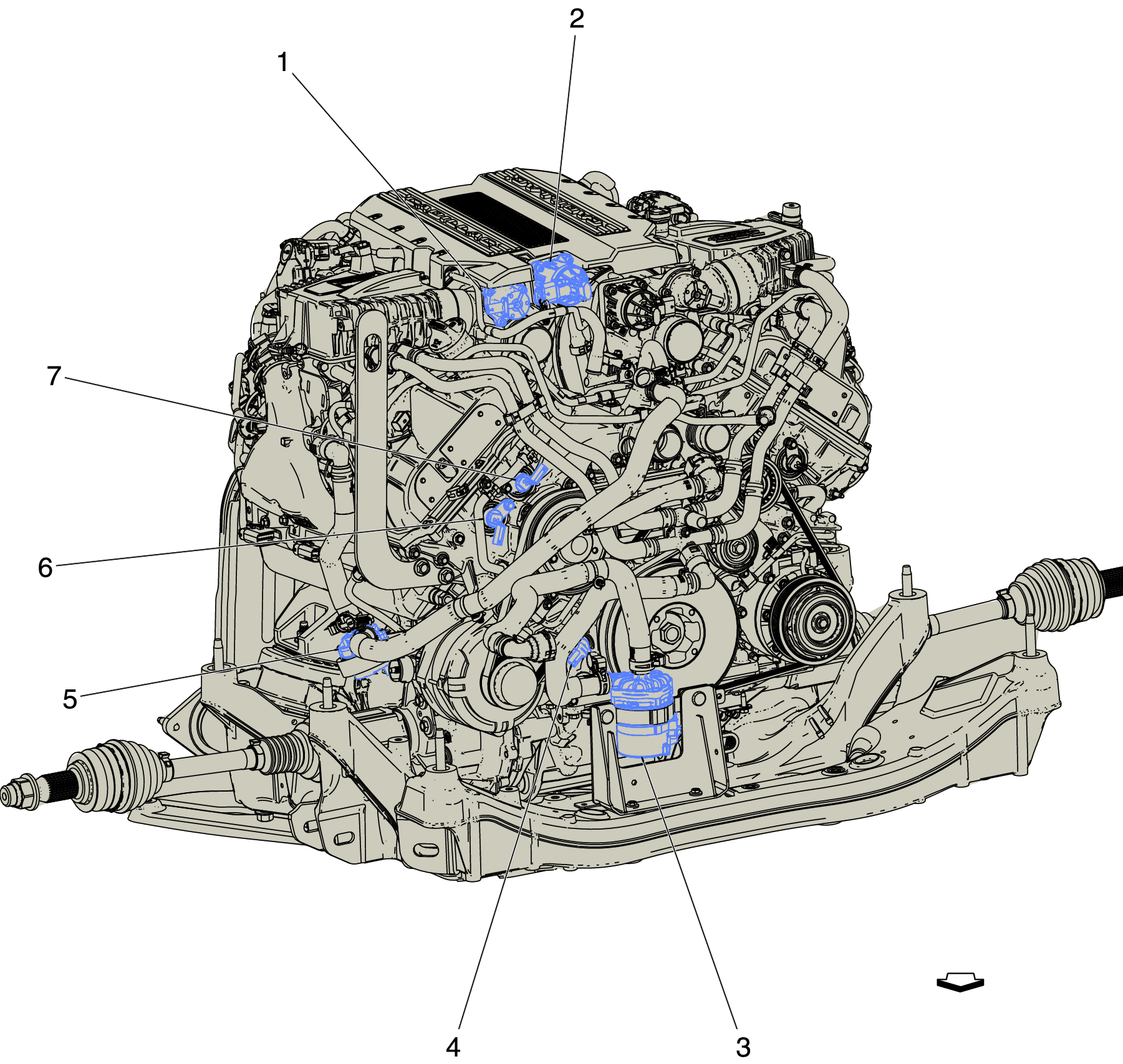

Engine Components - Right Front (LTA)

GM5106142Courtesy of GENERAL MOTORS COMPANY
Engine Components - Right Front (LTA)

Items
1. Q40B Turbocharger 2 Bypass Solenoid Valve (LGW) Q40B Turbocharger 2 Bypass Solenoid Valve (LGW)Q40B Turbocharger 2 Bypass Solenoid Valve (LTA)
2. M128B Turbocharger Wastegate Actuator - Bank 2 (LTA) M128B Turbocharger Wastegate Actuator - Bank 2
3. M10 Charge Air Cooler Coolant Pump (LGW) M10 Charge Air Cooler Coolant Pump (LGW)M10 Charge Air Cooler Coolant Pump (LTA)
4. Q44 Engine Oil Pressure Control Solenoid Valve Q44 Engine Oil Pressure Control Solenoid Valve (LGW/LGX)Q44 Engine Oil Pressure Control Solenoid Valve (LTA)
5. G17 Heater Coolant Pump G17 Heater Coolant Pump (LGW)G17 Heater Coolant Pump (LGX/LTA)
6. Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LGW/LGX/LTA) Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake
7. Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LGW/LGX/LTA) Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust
