Installation Procedure
Battery Monitor Module (2) - Install
- Battery Post Negative Cable Clamp Nut (1) - Install and tighten 4.5 N.m (40 lb in)
Battery Negative Cable (4) - Install
- Hold the battery negative terminal into position with a open ended wrench. (1)
- Battery Negative Cable Nut (2) @ Battery Monitor Module - Install and tighten 9 N.m (80 lb in)
- Electrical Connector (3) - Connect

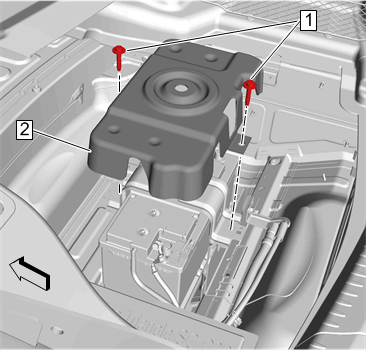

Battery Cover (2) - Install
- Battery Cover Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)

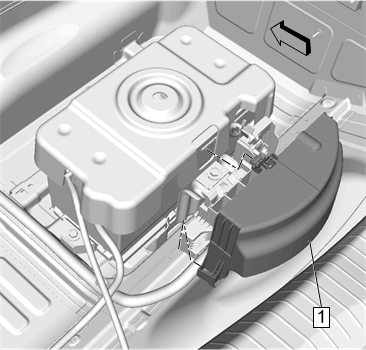

Rear Body Fuse Block Cover (1) - Install
Spare Tire (2) - Install
- Spare Tire Stowage Retainer (1) - Hand tighten

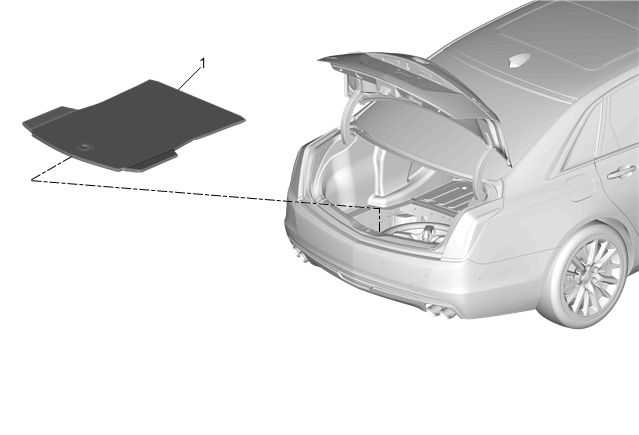

Rear Compartment Floor Panel Trim (1) - Install - Rear Compartment Floor Panel Trim Replacement
- Perform the battery sensor learn procedure. Battery Sensor Module Learn
CAUTION:
Refer to Fastener Caution
