Installation Procedure

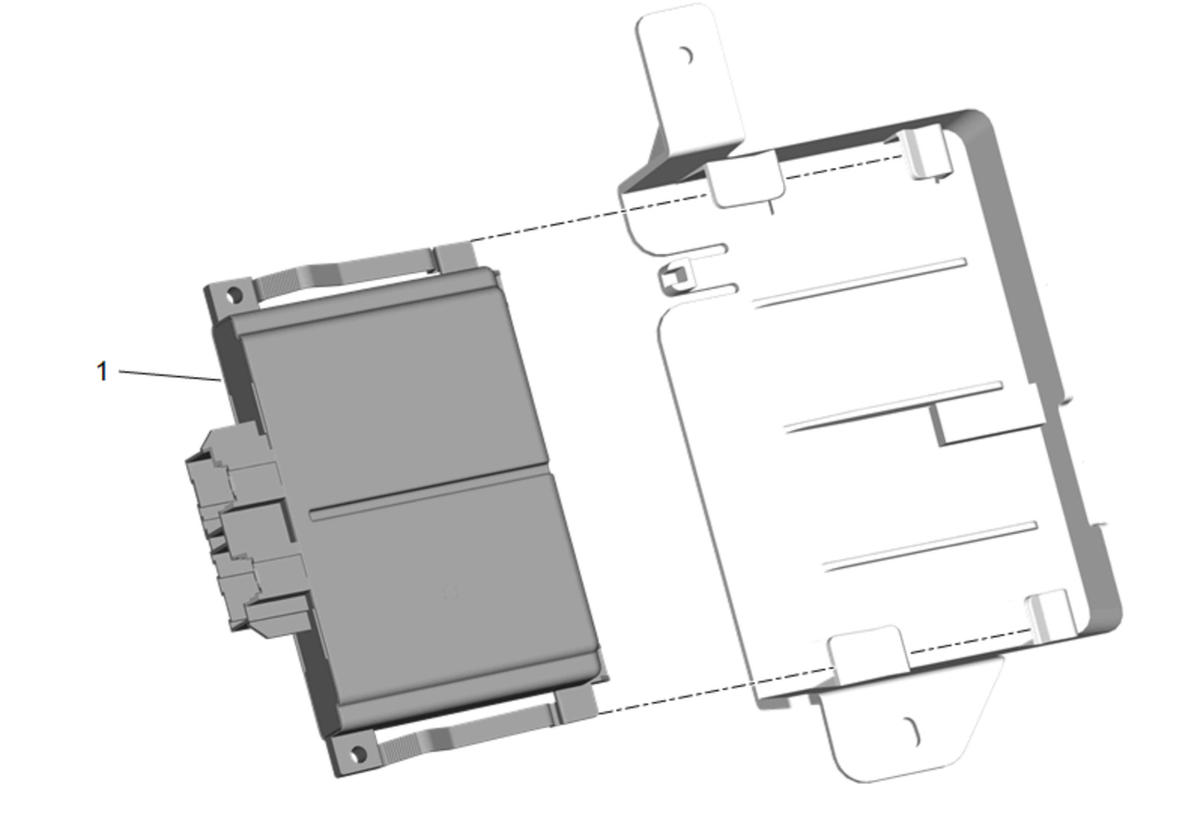

  1. Active Safety Control Module (1) - Install
    GM5150835Courtesy of GENERAL MOTORS COMPANY
  2. Connect the electrical connectors.

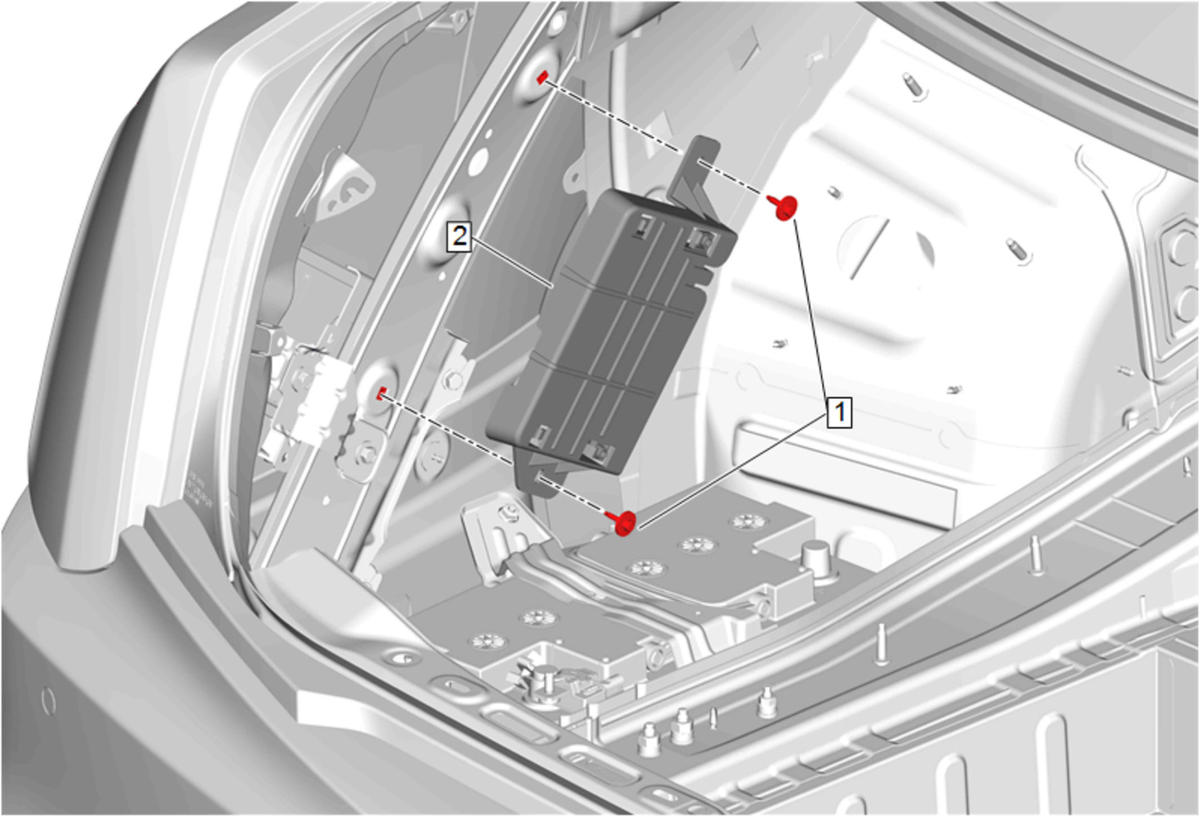

  3. Active Safety Control Module Bracket (2) - Install
    GM5150834Courtesy of GENERAL MOTORS COMPANY
    4. CAUTION:

    Fastener Caution

  4. Active Safety Control Module Bracket Bolt (1) - Install and tighten [2x] 2.5 N.m (22 lb in)

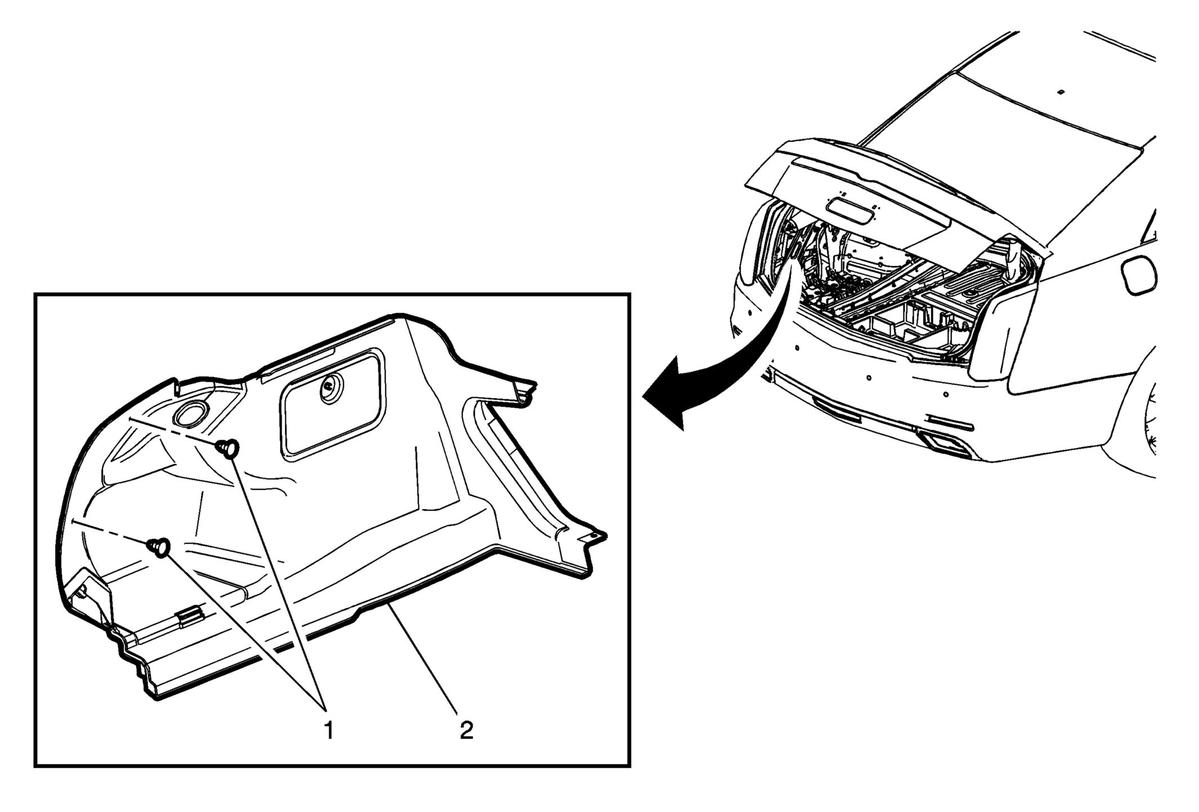

  5. Rear Compartment Side Trim Panel- Left Side (2) - Install - Rear Compartment Side Trim Replacement - Left Side
    GM3471420Courtesy of GENERAL MOTORS COMPANY
  6. Perform the necessary programming and setup procedure:Control Module References
