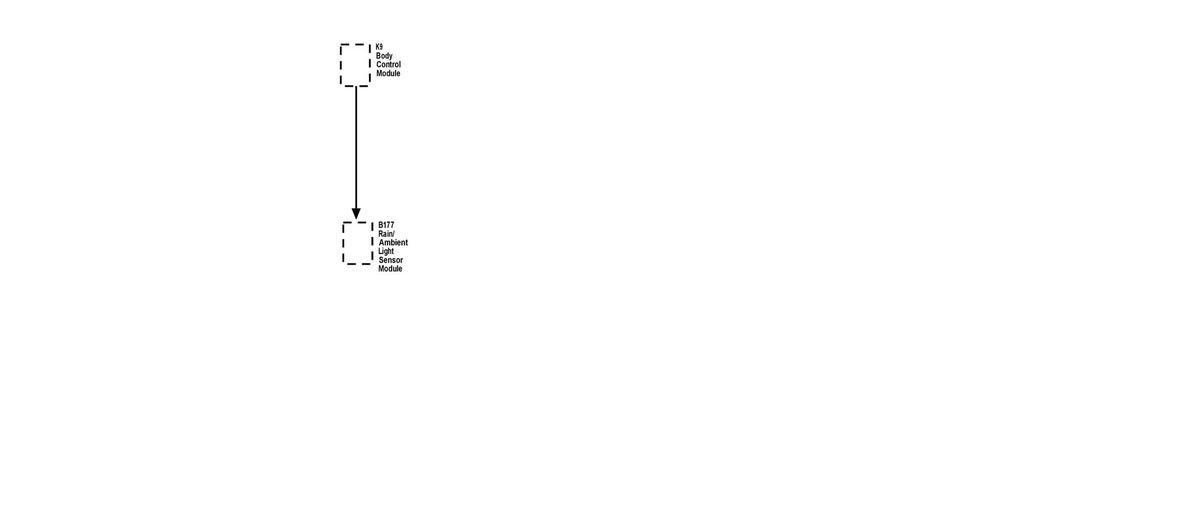

Rain Sense Mode and Rain Sense Indicator Block Diagram

GM3471765Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
K9 K9 Body Control Module
B177 B177 Rain/Ambient Light Sensor Module
