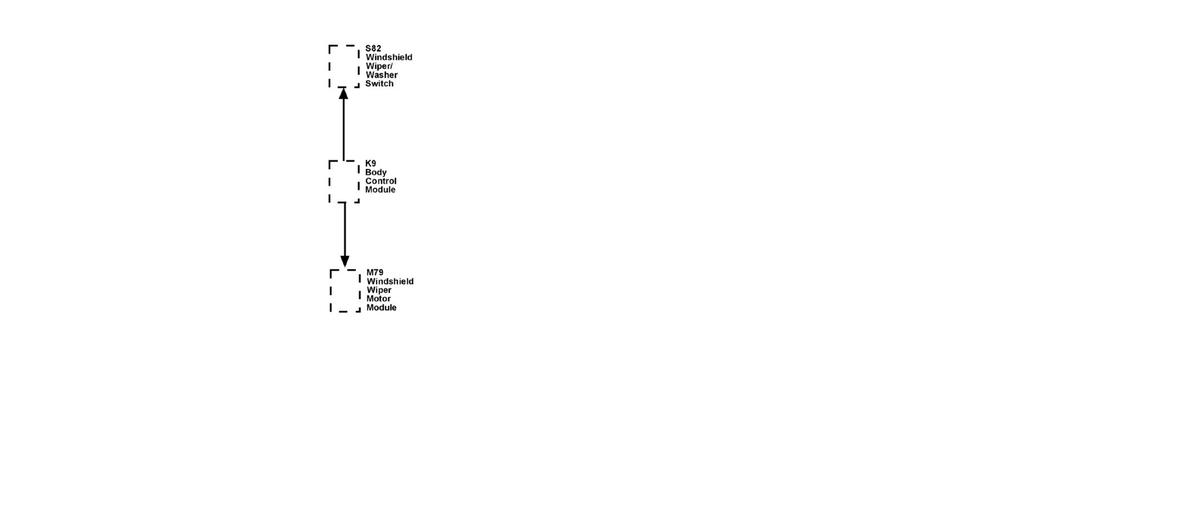

Windshield Wiper System Block Diagram

GM3471764Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
S82 S82 Windshield Wiper/Washer Switch
K9 K9 Body Control Module
M79 M79 Windshield Wiper Motor Module
