Engine Control Module Bracket Replacement (LF3)

Courtesy of GENERAL MOTORS COMPANY

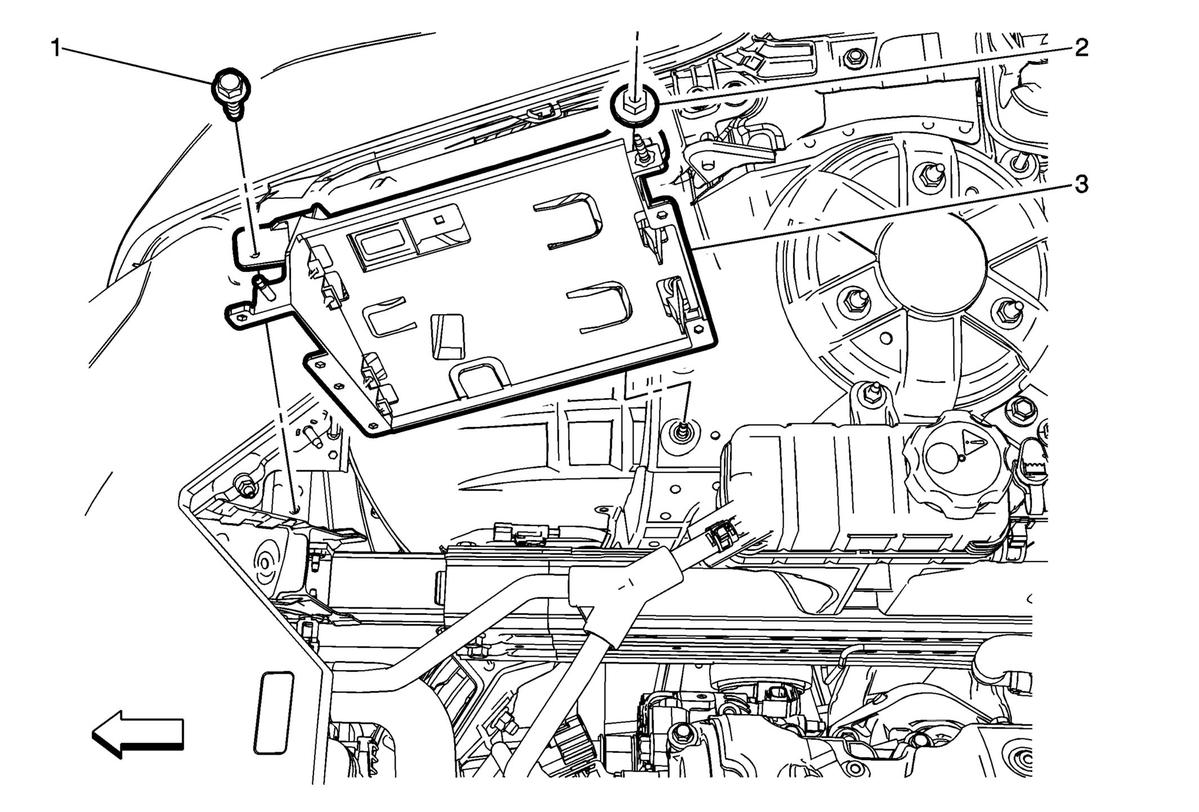

Callout	Component Name
Preliminary Procedure  Remove the engine control module. Refer to Engine Control Module Replacement .
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  7 N.m (62 lb in)
2	Engine Control Module Bracket Nut Tighten  7 N.m (62 lb in)
3	Engine Control Module Bracket
