Engine Control Module Bracket Replacement (LGX)

Courtesy of GENERAL MOTORS COMPANY

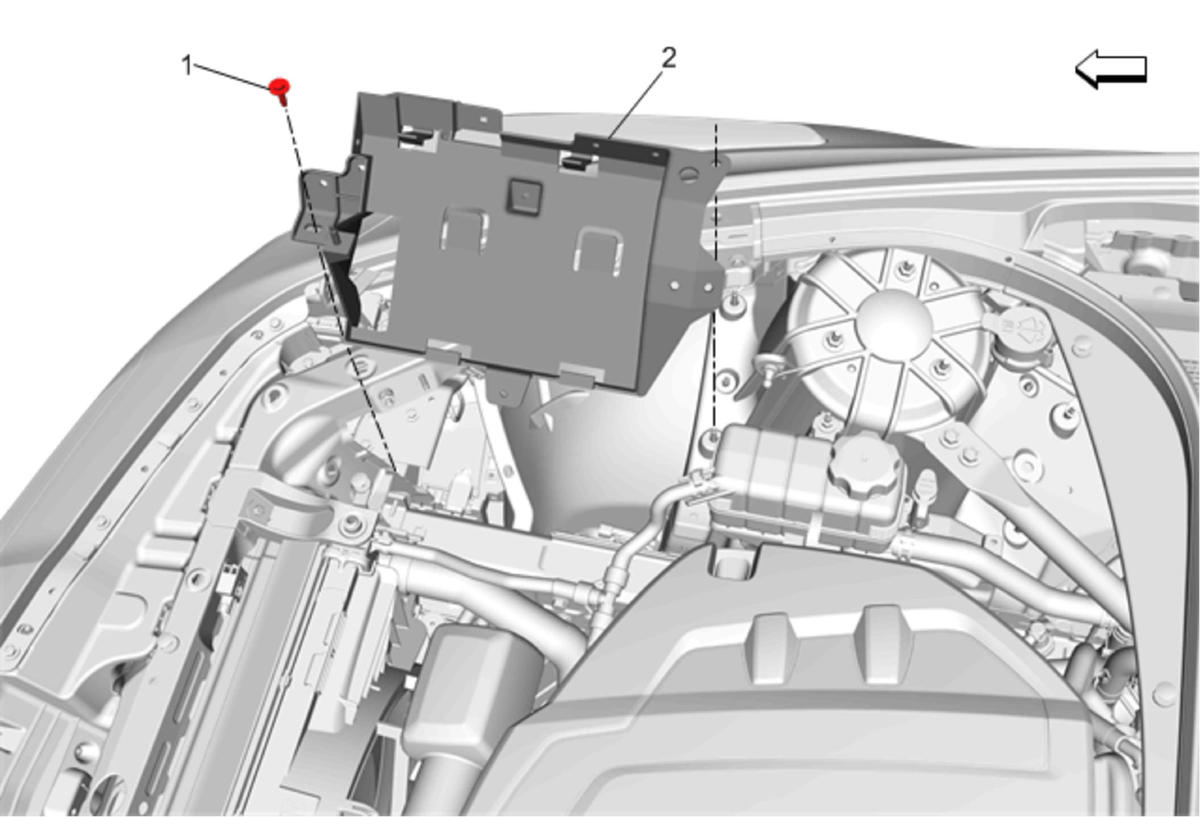

Callout	Component Name
Preliminary Procedure  Remove the engine control module. Engine Control Module Replacement (LGX)
1	Engine Control Module Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten  4.5 N.m (40 lb in)
2	Engine Control Module Bracket
