Engine Control Module Bracket Replacement

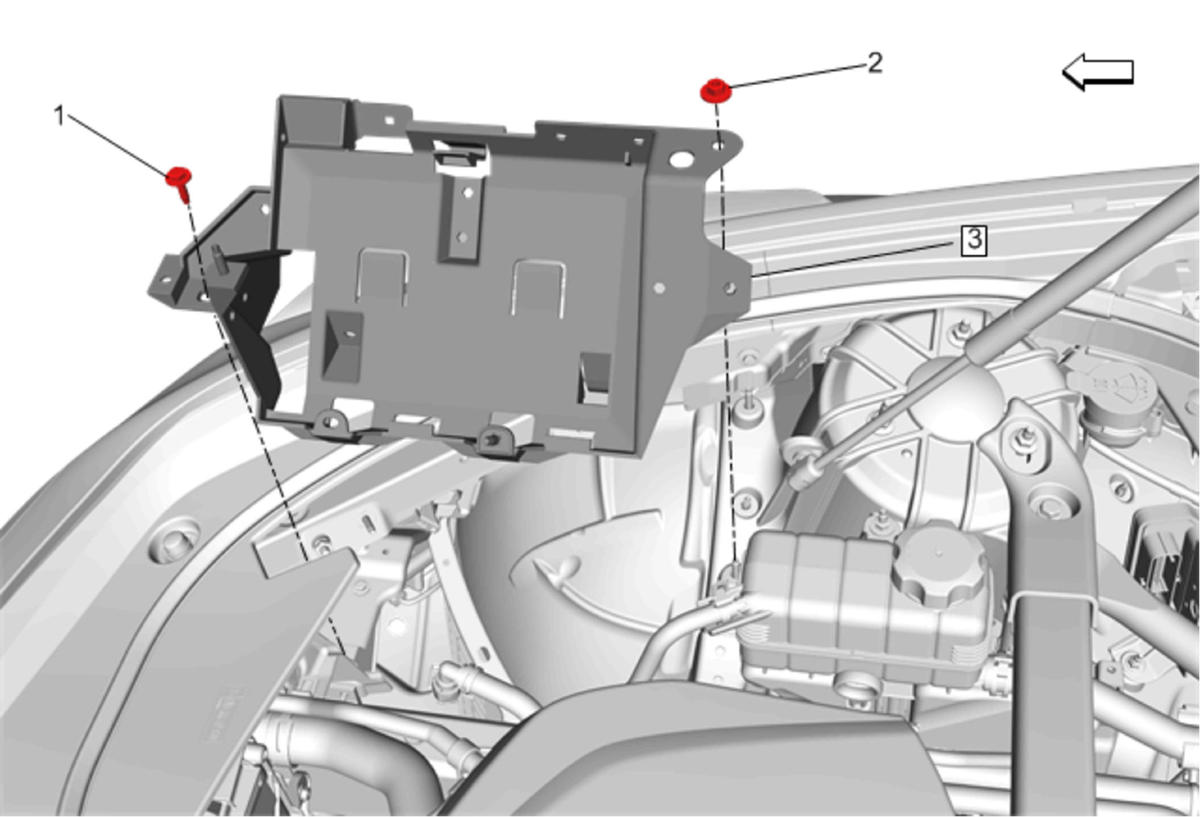

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine control module. Engine Control Module Replacement |
|
| 1 | Engine Control Module Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 7 N.m (62 lb in) |
| 2 | Engine Control Module Bracket Nut Tighten 7 N.m (62 lb in) |
| 3 | Engine Control Module Bracket Procedure Unclip and reposition engine harnesses from the engine control module bracket. |
