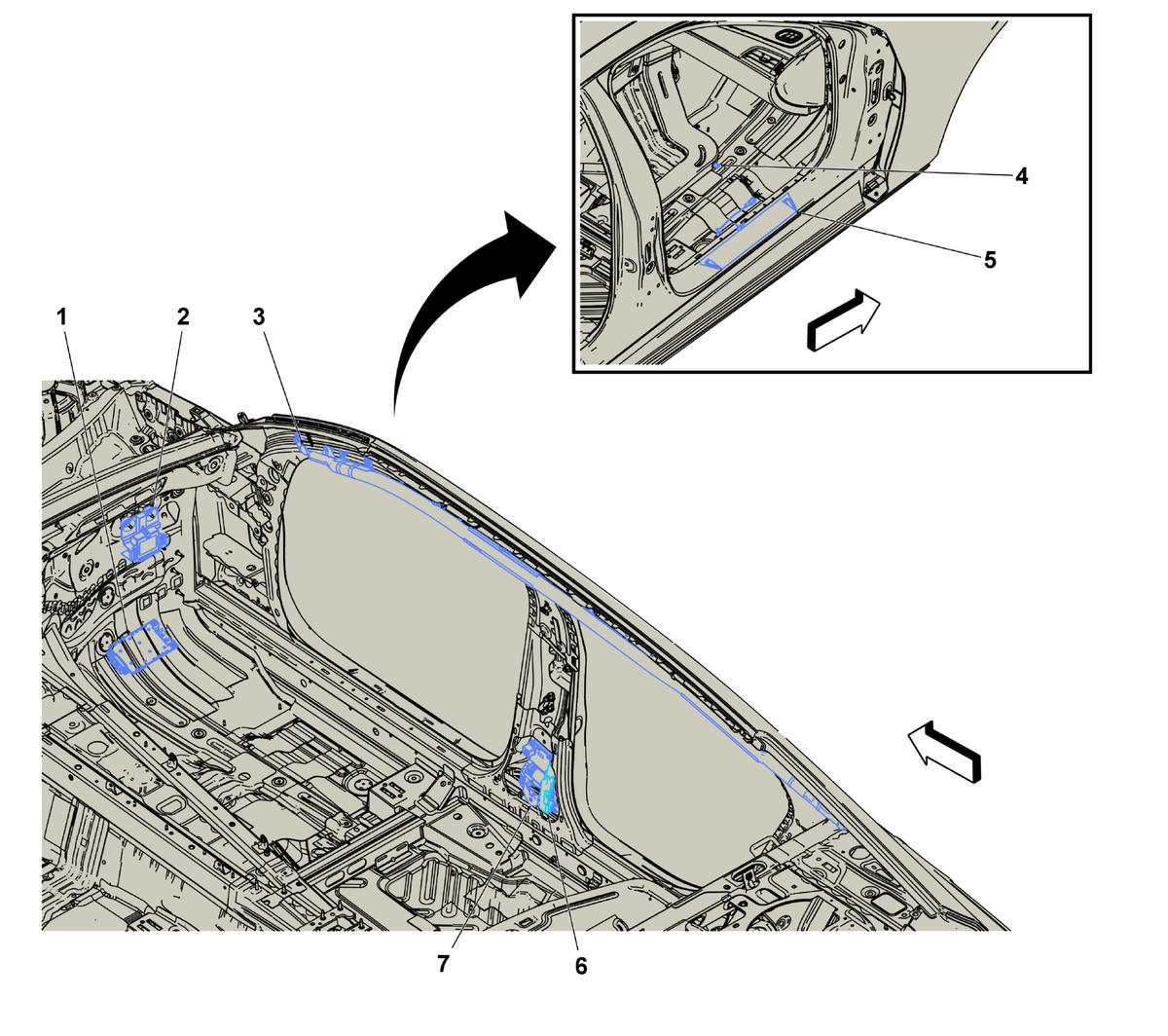

Passenger Compartment Components - Right Front

GM4935389Courtesy of GENERAL MOTORS COMPANY
Items
1. K161 Vehicle Performance Data Recorder (UQT) K161 Vehicle Performance Data Recorder X1 (UQT) , or K161 Vehicle Performance Data Recorder X2 (UQT) , or K161 Vehicle Performance Data Recorder X3 (UQT) , or K161 Vehicle Performance Data Recorder X4 (UQT) , or K161 Vehicle Performance Data Recorder X5 (UQT) , or K161 Vehicle Performance Data Recorder X6 (UQT)
2. K26 Headlamp Control Module (T4F) K26 Headlamp Control Module
3. F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right
4. B7C Air Temperature Sensor - Duct Lower Auxiliary (CJ4) B7C Air Temperature Sensor - Duct Lower Auxiliary
5. E8B Door Sill Plate Lamp - Passenger (B7G) E8B Door Sill Plate Lamp - Passenger
6. F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger
7. M101R Seat Belt Retractor Motor Module - Right (AX7) M101R Seat Belt Retractor Motor Module - Right
