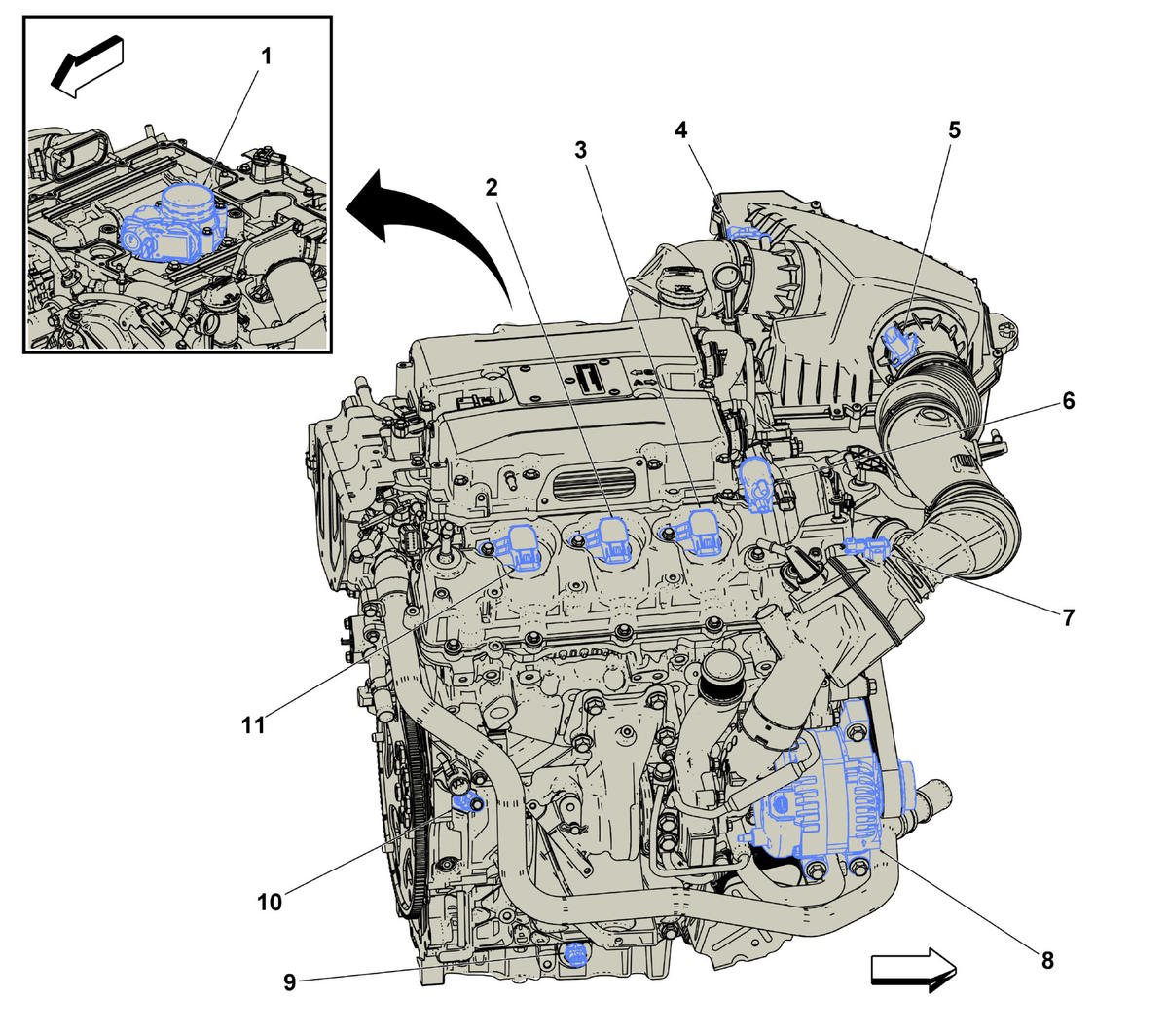

| 1. Q38 Throttle Body Q38 Throttle Body (LF3) |
| 2. T8C Ignition Coil 3 T8C Ignition Coil 3 (LF3) |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 (LF3) |
| 4. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 5. B75B Mass Air Flow/Intake Air Temperature Sensor (LF3) B75B Mass Air Flow/Intake Air Temperature Sensor |
| 6. Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 7. B17 Barometric Pressure Sensor B17 Barometric Pressure Sensor (LF3) |
| 8. G13 Generator G13 Generator X1 (-LT4)G13 Generator X2 (LF3) |
| 9. B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LF3/LT4) |
| 10. B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LF3) |
| 11. T8E Ignition Coil 5 (LF3/LGX/LT4) T8E Ignition Coil 5 (LF3) |
